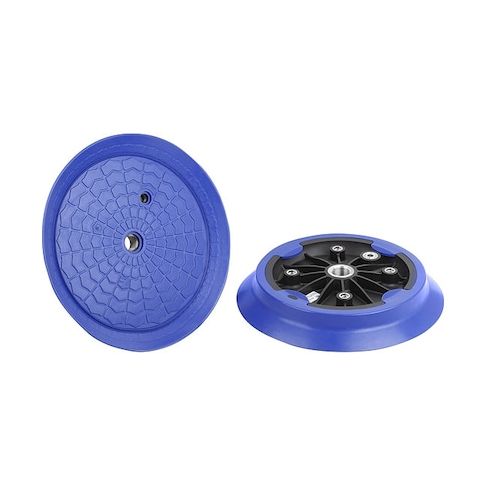

Flat Suction Plate MPN:10.01.01.13536
Flat Suction Plate
The SCHMALZ Flat Suction Plate is a versatile and reliable component designed for a variety of applications. Its flat design and large suction surface make it ideal for use in manufacturing, assembly, and testing processes where a stable and secure hold is required. The plate's high durometer rating and NBR material ensure excellent durability and resistance to wear and tear, while its gray color provides visibility and ease of inspection. Suitable for use in a range of industries, including automotive, aerospace, and medical device manufacturing, the SCHMALZ Flat Suction Plate is a valuable addition to any production line.
Top product features:
- Flat design allows for easy cleaning and maintenance
- Suction cup provides secure attachment to a surface
- 11mm stroke allows for precise movement and control
Top product applications:
- Assembly of hydraulic systems
- Vacuum lifting and handling of flat objects
- Precision placement and alignment of flat components
Item Suction Plate Assembly, Durometer 60 A, Outside Diameter 210 mm, Overall Height 44.2 mm, Pad Color Gray, Pad Diameter 220 mm, Hardness 60 Shore A, Pad Height 32 mm, Pad Material NBR, Pad Type Plate, Port Size 1/2 in, Port Type G, Series SUF, Stroke 11 mm, Weight 546 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 13 days
- Minimum Order Quantity: 5
- Unit of Measure: EA
- Package Length: 12.00
- Package Width: 9.00
- Package Height: 4.00
- Package Weight: 24.39
Product info last updated on April 4, 2026 9:12am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
