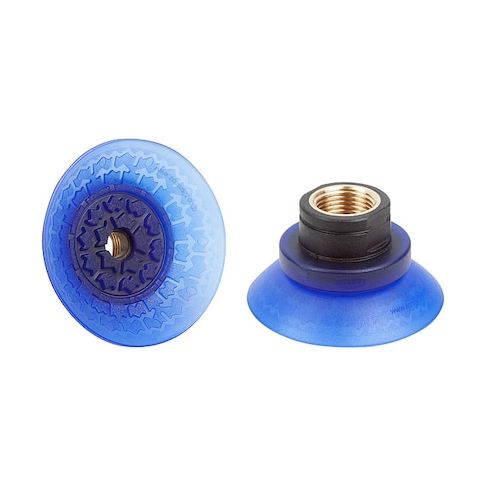

Bell Suction Cup for Sheet handling MPN:10.01.19.00150
Bell Suction Cup for Sheet handling
The SCHMALZ Bell Suction Cup for Sheet handling is a reliable and efficient solution for handling sheet metal. Its Durometer 85 A vacuum pad provides a strong grip, while its deep pad design allows for easy handling of flat sheets. With a compact design and lightweight construction, this suction cup is ideal for use in a variety of applications, including manufacturing, assembly, and material handling. Its high-quality Elastodur ED material ensures durability and resistance to wear and tear, making it a valuable addition to any sheet handling operation. Its compact size and easy handling make it perfect for use in tight spaces.
Top product features:
- Deep pad design for handling sheet metal with multiple folds
- 85 Shore A hardness for consistent suction and durability
- 3/8 inch G port for easy connection to vacuum systems
Top product applications:
- Sheet Metal Handling
- Handling of large or heavy sheet metal parts
- Heavy Duty Sheet Metal Fabrication
Item Vacuum Pad Assembly, Durometer 85 A, For Use With Handling Sheet Metal, Number of Folds 0, Outside Diameter 50 mm, Overall Height 41.6 mm, Pad Color Blue, Pad Diameter 58.4 mm, Hardness 85 Shore A, Pad Height 29.6 mm, Pad Material Elastodur ED, Pad Type Deep, Port Size 3/8 in, Port Type G, Series SAX, Stroke 8.4 mm, Weight 26.2 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 2.10
- Package Height: 1.80
- Package Weight: 0.35
