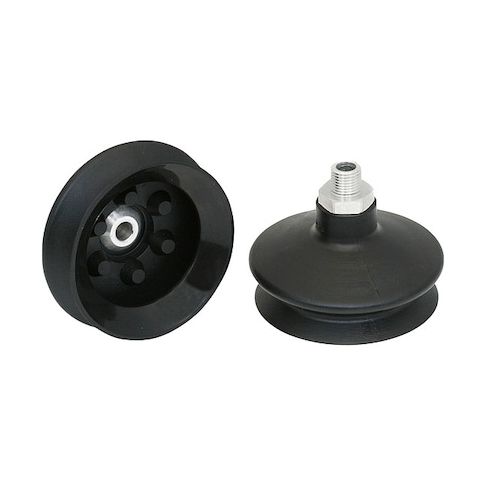

Bellow Suction Cup, 1.5 MPN:10.01.06.00084
Bellow Suction Cup, 1.5
The SCHMALZ Bellow Suction Cup is a versatile and reliable vacuum pad assembly designed for a wide range of applications. Its durable aluminum construction and NBR pad material provide excellent grip and resistance to wear, making it suitable for use in industries such as manufacturing, logistics, and healthcare. The bellow design allows for smooth and quiet operation, while the maximum vacuum pressure of -0.6 bar ensures a secure hold on various surfaces. With a compact size and lightweight design, this suction cup is easy to integrate into existing systems, making it an ideal solution for applications requiring precision and reliability.
Top product features:
- The bellow suction cup is designed with a bellows type pad, allowing for a flexible and adaptable seal.
- The pad material is NBR, providing a durable and long-lasting vacuum seal.
- The suction cup has a maximum vacuum pressure of -0.6 bar, enabling it to handle strong suction forces.
Top product applications:
- Vacuum handling of sensitive electronic components
- Robotics and automation applications
- Medical device manufacturing and assembly
Item Vacuum Pad Assembly, Adapter Material Aluminum, Durometer 55 A, Maximum Vacuum Pressure -0.6 bar, Number of Folds 1.5, Outside Diameter 78 mm, Overall Height 64 mm, Pad Color Black, Pad Diameter 84.5 mm, Hardness 55 Shore A, Pad Height 53 mm, Pad Material NBR, Pad Type Bellows, Port Size 1/4 in, Port Type G, Series FSGA, Standards DIN ISO 3302-1 M3, Stroke 16 mm, Weight 71 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.70
- Package Width: 5.40
- Package Height: 3.40
- Package Weight: 0.92
Product info last updated on February 13, 2026 3:09pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
