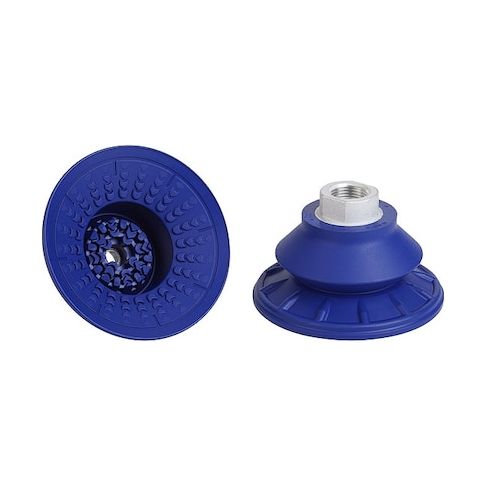

Bellow Suction cup for Sheet handling MPN:10.01.06.00676
Bellow Suction cup for Sheet handling
The SCHMALZ Bellow Suction Cup for Sheet handling is a high-performance vacuum pad designed for efficient and precise handling of sheet metal. Its bellows-type design allows for smooth and flexible movement, while the 60 Shore A hardness ensures reliable grip and durability. With a maximum vacuum pressure of -0.6 bar and 1.5 folds, this suction cup can handle a wide range of sheet metal sizes and materials. Ideal for use in various industries such as manufacturing, construction, and metalworking, this suction cup offers improved productivity, reduced handling time, and increased safety.
Top product features:
- Vacuum pressure can reach up to -0.6 bar to securely grip sheet metal.
- The bellow suction cup can handle up to 1.5 folds in the sheet metal without losing vacuum.
- The pad is made of NBR material with a hardness of 60 Shore A, providing durability and resistance to wear and tear.
Top product applications:
- Sheet Metal Handling
- Handling of Thin Metal Sheets
- Manufacturing and Fabrication of Metal Parts
Item Vacuum Pad Assembly, Adapter Material Aluminum, Durometer 60 A, For Use With Handling Sheet Metal, Maximum Vacuum Pressure -0.6 bar, Number of Folds 1.5, Outside Diameter 80 mm, Overall Height 64.9 mm, Pad Color Blue, Pad Diameter 89 mm, Hardness 60 Shore A, Pad Height 49.9 mm, Pad Material NBR, Pad Type Bellows, Port Size 3/8 in, Port Type G, Series SAB, Standards DIN ISO 3302-1 M3, Stroke 22.1 mm, Weight 63 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.20
- Package Width: 6.60
- Package Height: 3.00
- Package Weight: 0.83
Product info last updated on April 29, 2026 3:57am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
