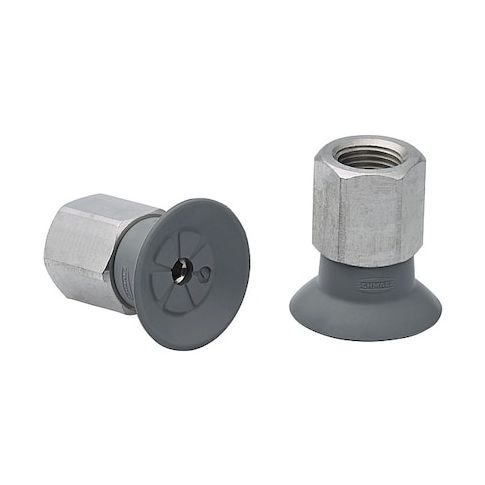

Flat Suction Cup MPN:10.01.01.14117
Flat Suction Cup
The SCHMALZ Flat Suction Cup is a versatile and reliable solution for a variety of applications. Its flat design and 55A durometer hardness make it suitable for use with sensitive surfaces, while its maximum vacuum pressure of -0.6 bar ensures a secure grip. The cup's compact size and low weight make it ideal for use in tight spaces and automated systems. Suitable for applications in the electronics, automotive, and medical industries, this suction cup provides a reliable and repeatable way to secure and manipulate objects. Its high-quality construction and durable design ensure long-lasting performance and reliability.
Top product features:
- Flat suction cup design provides a stable and secure attachment to surfaces
- Vacuum pad material NBR offers resistance to oil and fuel
- Maximum vacuum pressure of -0.6 bar enables effective gripping and holding power
Top product applications:
- Medical Equipment
- Automotive Assembly
- Robotics and Automation
Item Vacuum Pad Assembly, Durometer 55 A, Maximum Vacuum Pressure -0.6 bar, Number of Folds 0, Outside Diameter 15 mm, Overall Height 31 mm, Pad Color Gray, Pad Diameter 16.8 mm, Hardness 55 Shore A, Pad Height 23 mm, Pad Material NBR, Pad Type Flat, Port Size 1/8 in, Port Type G, Series SUF, Stroke 1.5 mm, Weight 5.7 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 10
- Unit of Measure: EA
- Package Length: 4.30
- Package Width: 3.50
- Package Height: 2.30
- Package Weight: 0.22
Product info last updated on March 11, 2026 12:45pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
