Bell Suction Cup for Sheet handling MPN:10.01.19.00141

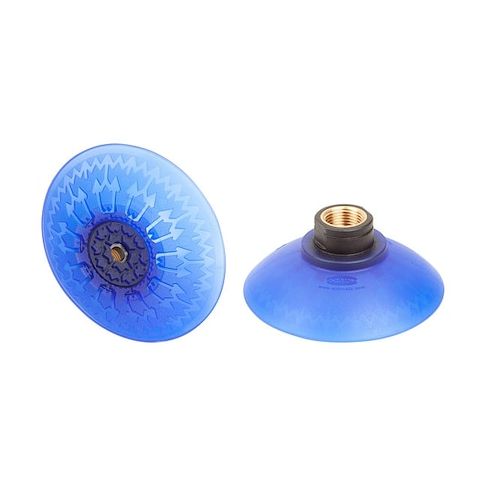

Bell Suction Cup for Sheet handling
The SCHMALZ Bell Suction Cup for Sheet handling is a reliable and efficient solution for handling sheet metal in various industries. Its deep pad design provides excellent grip and stability, allowing for smooth and precise handling of sheets with zero folds. The cup's elastomeric material ensures a secure hold, reducing the risk of sheet damage or slippage. Suitable for applications such as metal fabrication, manufacturing, and assembly, this suction cup is a valuable addition to any sheet handling operation, increasing productivity and reducing labor costs. Its compact size and lightweight design make it easy to integrate into existing workflows.
Top product features:
- Deep pad design for handling sheet metal
- Elastodur ED material for durability and reliability
- 85 Shore A hardness for consistent suction and grip
Top product applications:
- Sheet metal handling
- Sheet metal fabrication
- Metal stamping
Item Vacuum Pad Assembly, Durometer 85 A, For Use With Handling Sheet Metal, Number of Folds 0, Outside Diameter 80 mm, Overall Height 46.5 mm, Pad Color Blue, Pad Diameter 92.2 mm, Hardness 85 Shore A, Pad Height 34.5 mm, Pad Material Elastodur ED, Pad Type Deep, Port Size 3/8 in, Port Type G, Series SAX, Stroke 13.9 mm, Weight 35 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 5
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 10.00
- Package Height: 10.00
- Package Weight: 0.10
