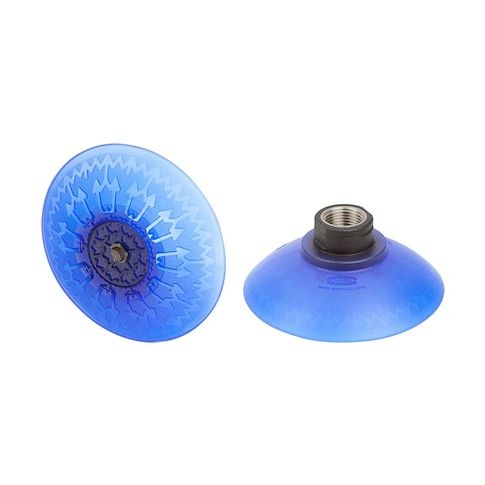

Bell Suction Cup for Sheet handling MPN:10.01.19.00145
Bell Suction Cup for Sheet handling
The SCHMALZ Bell Suction Cup for Sheet handling is a reliable and efficient solution for handling sheet metal in various industries. Designed for use with flat sheets, this vacuum pad assembly features a Durometer 85 A elastomer for optimal grip and stability. With an outside diameter of 80 mm and overall height of 46.5 mm, it can handle sheets with ease, reducing the risk of damage and improving productivity. Suitable for use in industries such as metal fabrication, automotive, and aerospace, this suction cup assembly offers a cost-effective and space-saving solution for sheet handling applications.
Top product features:
- Deep pad design for handling sheet metal with multiple folds
- Elastodur ED material for durability and resistance to wear
- Vacuum pad with 3/8 in NPT port for secure attachment to a vacuum system
Top product applications:
- Sheet metal handling and processing
- Automotive manufacturing and assembly lines
- Metal fabrication and machining operations
Item Vacuum Pad Assembly, Durometer 85 A, For Use With Handling Sheet Metal, Number of Folds 0, Outside Diameter 80 mm, Overall Height 46.5 mm, Pad Color Blue, Pad Diameter 92.2 mm, Hardness 85 Shore A, Pad Height 34.5 mm, Pad Material Elastodur ED, Pad Type Deep, Port Size 3/8 in, Port Type NPT, Series SAX, Stroke 13.9 mm, Weight 35 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 5
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 10.00
- Package Height: 10.00
- Package Weight: 0.10
Product info last updated on March 23, 2026 6:04am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
