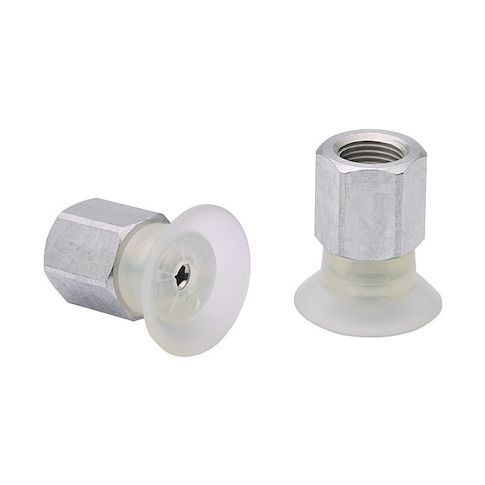

Flat Suction Cup MPN:10.01.01.14170
Flat Suction Cup
The SCHMALZ Flat Suction Cup is a reliable and versatile component for various applications. Its food-grade silicone rubber construction ensures a secure and sanitary vacuum seal, making it ideal for use in the food processing, pharmaceutical, and laboratory industries. With a maximum vacuum pressure of -0.6 bar and a stroke of 1.5 mm, this suction cup provides a consistent and controlled grip. Its compact design and low weight make it easy to integrate into robotic systems and other machinery, while its FDA approval ensures compliance with strict industry standards. Suitable for a wide range of applications, including pick-and-place, assembly, and inspection tasks.
Top product features:
- Flat design for easy mounting and minimal space usage
- Made from food-grade silicone rubber for safe use in applications involving food contact
- Creates a maximum vacuum pressure of -0.6 bar for secure attachment
Top product applications:
- Automotive manufacturing: used for vacuum cup applications in the production of vehicles, such as holding parts in place during assembly.
- Medical device manufacturing: used as a vacuum component in medical devices, such as ventilators or anesthesia machines, to hold parts in place during assembly.
- Robotics and automation: used as a vacuum component in robotic grippers, allowing robots to pick and place objects with precision and accuracy.
Item Vacuum Pad Assembly, Durometer 55 A, Maximum Vacuum Pressure -0.6 bar, Number of Folds 0, Outside Diameter 15 mm, Overall Height 24.5 mm, Pad Color Clear, Pad Diameter 16.8 mm, Hardness 55 Shore A, Pad Height 19 mm, Pad Material Food Grade Silicone Rubber, Pad Type Flat, Port Size M5, Port Type Metric, Series SUF, Standards FDA Approved, Stroke 1.5 mm, Weight 2.1 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 13 days
- Minimum Order Quantity: 10
- Unit of Measure: EA
- Package Length: 11.25
- Package Width: 8.75
- Package Height: 6.00
- Package Weight: 0.04
