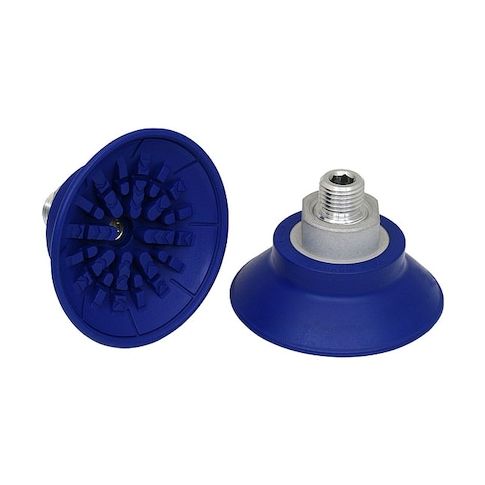

Flat Suction Cup for Sheet handling MPN:10.01.01.10622
Flat Suction Cup for Sheet handling
The SCHMALZ Flat Suction Cup is a reliable solution for handling sheet metal with precision and efficiency. Designed for use in various industries, this suction cup features a durable aluminum adapter and a high-quality NBR pad with a durometer of 60 A, ensuring a strong and consistent vacuum. Its flat design and compact size make it ideal for handling thin sheets and reducing the risk of damage. With a maximum vacuum pressure of -0.6 bar and a stroke of 6 mm, this suction cup is perfect for applications in manufacturing, assembly, and logistics, where precision and speed are crucial.
Top product features:
- Flat suction cup design for handling sheet metal
- Vacuum pad assembly with aluminum adapter
- Maximum vacuum pressure of -0.6 bar for secure handling
Top product applications:
- Sheet Metal Handling
- Sheet Metal Fabrication
- Metal Stamping
Item Vacuum Pad Assembly, Adapter Material Aluminum, Durometer 60 A, For Use With Handling Sheet Metal, Maximum Vacuum Pressure -0.6 bar, Number of Folds 0, Outside Diameter 60 mm, Overall Height 41 mm, Pad Color Blue, Pad Diameter 67 mm, Hardness 60 Shore A, Pad Height 31 mm, Pad Material NBR, Pad Type Flat, Port Size 1/4 in, Port Type G, Series SAF, Standards DIN ISO 3302-1 M3, Stroke 6 mm, Weight 46.4 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 14 days
- Minimum Order Quantity: 5
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 0.30
