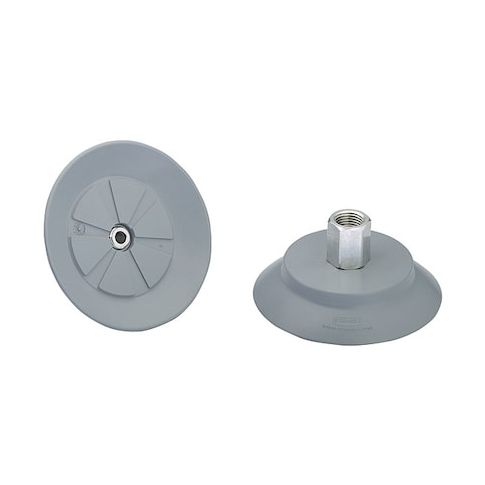

Flat Suction Cup MPN:10.01.01.14063
Flat Suction Cup
The SCHMALZ Flat Suction Cup is a versatile and reliable solution for various industrial applications. Its flat design and high vacuum pressure make it ideal for use on smooth surfaces, ensuring secure and stable gripping. With a maximum vacuum pressure of -0.6 bar and a hardness of 55 Shore A, this suction cup can handle heavy loads and withstand rough handling. Suitable for use in manufacturing, assembly, and material handling, this product is a must-have for industries requiring precise and efficient material transfer and handling. Its compact size and lightweight design also make it easy to integrate into existing systems.
Top product features:
- Flat design for easy installation and reduced obstruction
- Maximum vacuum pressure of -0.6 bar for secure suction
- Stroke of 6 mm for precise adjustment and movement
Top product applications:
- Automotive manufacturing: used for vacuum holding of components during assembly and testing.
- Medical device manufacturing: used for vacuum holding of devices during assembly and testing.
- Robotics and automation: used for vacuum holding of components during assembly and testing, and for other applications requiring precise and secure holding of parts.
Item Vacuum Pad Assembly, Durometer 55 A, Maximum Vacuum Pressure -0.6 bar, Number of Folds 0, Outside Diameter 70 mm, Overall Height 46.4 mm, Pad Color Gray, Pad Diameter 77.2 mm, Hardness 55 Shore A, Pad Height 34.4 mm, Pad Material NBR, Pad Type Flat, Port Size 1/4 in, Port Type G, Series SUF, Stroke 6 mm, Weight 61.3 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 13 days
- Minimum Order Quantity: 10
- Unit of Measure: EA
- Package Length: 12.25
- Package Width: 9.25
- Package Height: 12.00
- Package Weight: 1.37
Product info last updated on February 14, 2026 5:11pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
