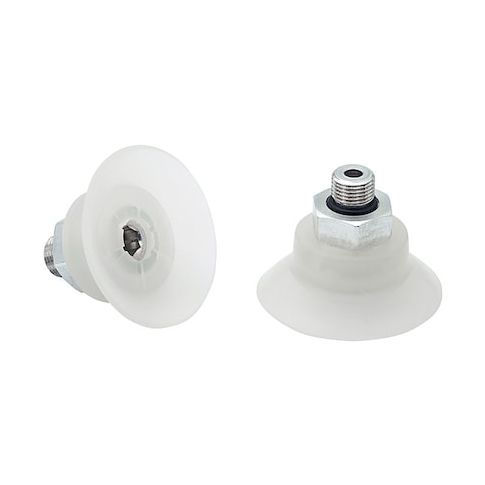

Flat Suction Cup MPN:10.01.01.14100
Flat Suction Cup
The SCHMALZ Flat Suction Cup is a versatile and reliable vacuum pad assembly, ideal for applications where a strong and consistent seal is required. Made from food-grade silicone rubber, it is suitable for use in various industries, including food processing, pharmaceutical, and laboratory settings. With a maximum vacuum pressure of -0.6 bar and a stroke of 5mm, this suction cup provides a secure grip on smooth surfaces. Its compact size and lightweight design make it easy to integrate into existing systems, while its FDA approval ensures compliance with strict regulatory standards. Suitable for a wide range of applications, including pick-and-place, assembly, and material handling.
Top product features:
- Flat design for easy mounting and installation
- Creates a maximum vacuum pressure of -0.6 bar for strong suction
- Made of food-grade silicone rubber for safe use in applications involving food and liquids
Top product applications:
- Automotive Industry: The flat suction cup from SCHMALZ can be used in the automotive industry for applications such as mounting and demounting components, and for handling and transporting parts.
- Medical and Laboratory Equipment: The food-grade silicone rubber material and FDA approval make this suction cup suitable for use in medical and laboratory settings, where cleanliness and safety are paramount.
- Robotics and Automation: The SCHMALZ flat suction cup can be used in robotics and automation applications, such as pick-and-place tasks, where a strong and consistent vacuum is required to handle and move objects.
Item Vacuum Pad Assembly, Durometer 55 A, Maximum Vacuum Pressure -0.6 bar, Number of Folds 0, Outside Diameter 50 mm, Overall Height 31.7 mm, Pad Color Clear, Pad Diameter 54.3 mm, Hardness 55 Shore A, Pad Height 24.2 mm, Pad Material Food Grade Silicone Rubber, Pad Type Flat, Port Size 1/8 in, Port Type G, Series SUF, Standards FDA Approved, Stroke 5 mm, Weight 23.1 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 22 days
- Minimum Order Quantity: 10
- Unit of Measure: EA
- Package Length: 11.25
- Package Width: 8.75
- Package Height: 6.00
- Package Weight: 0.46
Product info last updated on February 4, 2026 7:37am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
