Multistage Ejector MPN:10.02.01.01727

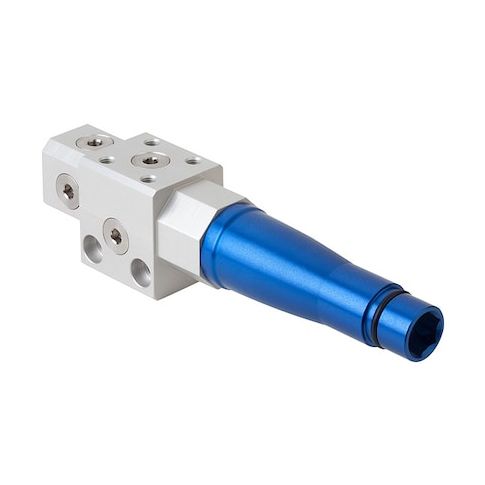

Multistage Ejector
The Multistage Ejector from SCHMALZ is a high-performance solution for various industrial applications. Its compact design and efficient operation make it ideal for use in tight spaces and demanding environments. With a maximum flow rate of 10.9 cfm and air consumption of 3.64 cfm, this ejector is perfect for applications requiring precise control and minimal air usage. Suitable for use in temperatures ranging from 0 to 60 degrees C, it can be utilized in a wide range of industries, including manufacturing, pharmaceuticals, and food processing, where precise vacuum control is essential. Its reliability and durability ensure smooth operation and extended lifespan.
Top product features:
- Multistage operation allows for efficient handling of varying flow rates
- The ejector can operate at temperatures between 0 and 60 degrees Celsius
- The ejector can handle pressures up to 6 bar
Top product applications:
- Vacuum conveying systems for the food and pharmaceutical industries
- Material handling systems in the textile and paper industries
- Automated manufacturing processes in the automotive and aerospace sectors
Item Multistage Ejector, Actuation Mechanism Pressure, Air Consumption 3.64 cfm, Maximum Flow Rate 10.9 cfm, Maximum Operating Temperature 60 Degrees C, Maximum Supply Pressure 6 bar, Maximum Vacuum Pressure 6 bar, Minimum Operating Temperature 0 Degrees C, Minimum Supply Pressure 2 bar, Minimum Vacuum Pressure 2 bar, Nozzle Diameter 1.6 mm, Number of Stages 3, Overall Depth 35 mm, Overall Height 44 mm, Overall Length 178.5 mm, Pressure Port Gender Female, Pressure Port Size 1/4 in
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 13 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 3.50
- Package Height: 3.00
- Package Weight: 0.81
Product info last updated on February 2, 2026 4:52am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
