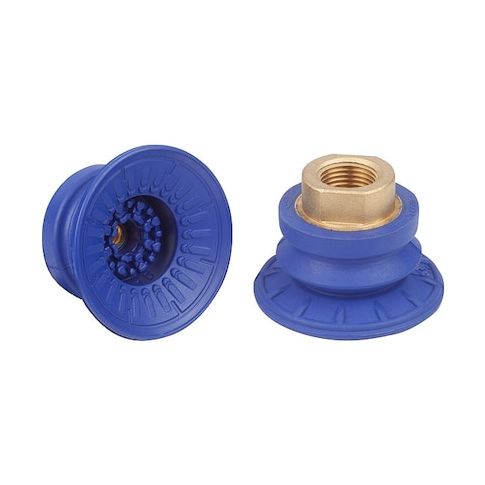

Bellow Suction cup for Sheet handling MPN:10.01.06.01971
Bellow Suction cup for Sheet handling
The SCHMALZ Bellow Suction Cup is a reliable and efficient solution for handling sheet metal. Its bellows design allows for smooth and flexible movement, reducing the risk of damage to the sheet or the suction cup itself. With a maximum vacuum pressure of -0.6 bar and a hardness of 60 Shore A, this suction cup provides a secure grip on a variety of sheet metals. Ideal for applications in the manufacturing and fabrication industries, this suction cup is perfect for use in assembly, handling, and transportation of sheet metal parts.
Top product features:
- Bellows design for flexible sheet handling
- Vacuum pressure up to -0.6 bar for secure grip
- Pad material NBR for durability and resistance to abrasion
Top product applications:
- Sheet metal handling
- Handling thin sheet metal products
- Sheet metal processing
Item Vacuum Pad Assembly, Adapter Material Brass, Durometer 60 A, For Use With Handling Sheet Metal, Maximum Vacuum Pressure -0.6 bar, Number of Folds 1.5, Outside Diameter 50 mm, Overall Height 51.9 mm, Pad Color Blue, Pad Diameter 56 mm, Hardness 60 Shore A, Pad Height 36.9 mm, Pad Material NBR, Pad Type Bellows, Port Size 3/8 in, Port Type NPT, Series SAB, Standards DIN ISO 3302-1 M3, Stroke 11.5 mm, Weight 32.3 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.00
- Package Width: 4.70
- Package Height: 3.00
- Package Weight: 0.67
