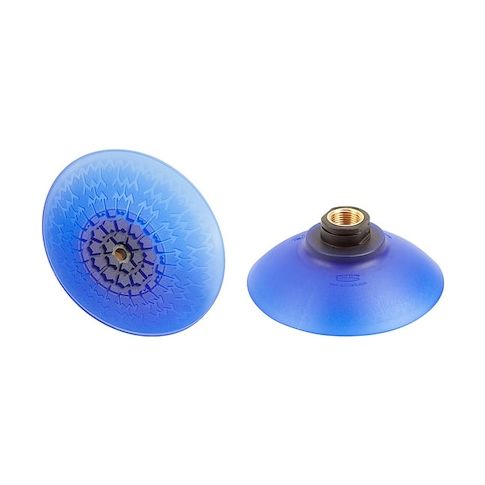

Bell Suction Cup for Sheet handling MPN:10.01.19.00154
Bell Suction Cup for Sheet handling
The SCHMALZ Bell Suction Cup for Sheet handling is a reliable and efficient solution for handling sheet metal. With its deep pad design and 85 Shore A hardness, it provides a secure grip on even the most delicate materials. Ideal for use in various industries such as metal fabrication, automotive, and aerospace, this suction cup enables smooth and precise handling of sheet metal. Its compact size and lightweight design also make it easy to integrate into existing production lines. By reducing manual labor and increasing productivity, this suction cup is a valuable addition to any sheet metal handling operation.
Top product features:
- Deep pad design for handling sheet metal with multiple folds
- Elastodur ED material for durability and resistance to wear
- Stroke of 17.3 mm for precise sheet handling and positioning
Top product applications:
- Sheet metal handling and processing
- Automotive industry manufacturing
- Metal fabrication and manufacturing
Item Vacuum Pad Assembly, Durometer 85 A, For Use With Handling Sheet Metal, Number of Folds 0, Outside Diameter 100 mm, Overall Height 51.7 mm, Pad Color Blue, Pad Diameter 111.1 mm, Hardness 85 Shore A, Pad Height 39.7 mm, Pad Material Elastodur ED, Pad Type Deep, Port Size 3/8 in, Port Type G, Series SAX, Stroke 17.3 mm, Weight 51 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 5
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 0.30
Product info last updated on January 22, 2026 1:11pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
