Bell Suction cup for Curved Sheet metal MPN:10.01.42.00004

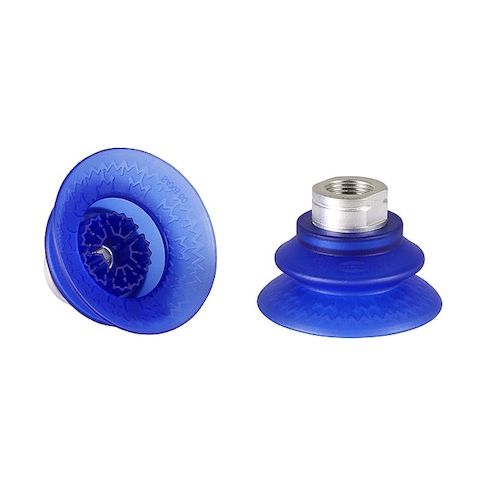

Bell Suction cup for Curved Sheet metal
The SCHMALZ Bell Suction Cup for Curved Sheet Metal is a versatile and reliable solution for handling and processing curved metal sheets. Its unique bellows design allows for smooth and even suction, while its aluminum adapter ensures a secure fit. With a hardness of 85 Shore A, this suction cup provides excellent durability and resistance to wear. Suitable for a variety of applications, including metal fabrication, manufacturing, and assembly, this product is ideal for industries such as automotive, aerospace, and construction. Its compact size and lightweight design make it easy to integrate into existing workflows.
Top product features:
- The product is designed for use with curved sheet metal.
- The vacuum pad assembly is made of aluminum.
- The pad is made of Elastodur ED material with a hardness of 85 Shore A.
Top product applications:
- Automotive manufacturing: for use in curved metal stamping and forming processes
- Medical equipment assembly: for securing medical devices to curved metal surfaces
- Aerospace industry: for use in curved metal fabrication and assembly of aircraft components
Item Vacuum Pad Assembly, Adapter Material Aluminum, Durometer 85 A, For Use With Curved Sheet Metal, Number of Folds 1.5, Outside Diameter 60 mm, Overall Height 54.3 mm, Pad Color Blue, Pad Diameter 66 mm, Hardness 85 Shore A, Pad Height 41.3 mm, Pad Material Elastodur ED, Pad Type Bellows, Port Size 3/8 in, Port Type G, Series SAXB, Stroke 14.5 mm, Weight 30.6 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 5
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 0.10
