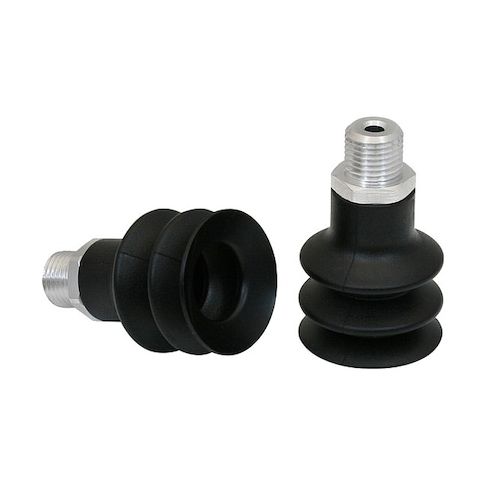

Bellow Suction Cup, 2.5 MPN:10.01.06.00030
Bellow Suction Cup, 2.5
The SCHMALZ Bellow Suction Cup is a versatile and reliable vacuum pad assembly designed for a wide range of applications. Its multi-bellows design provides a secure grip on various surfaces, making it ideal for use in industries such as manufacturing, logistics, and healthcare. The cup's aluminum adapter and NBR pad ensure high durability and resistance to wear and tear. With a maximum vacuum pressure of -0.6 bar and a stroke of 15 mm, this suction cup can handle heavy loads and withstand repeated use. Its compact size and lightweight design make it easy to integrate into existing systems.
Top product features:
- Multi-Bellows design allows for flexibility and adaptability in various applications.
- Vacuum Pad Assembly features a maximum vacuum pressure of -0.6 bar for secure attachment.
- Aluminum Adapter Material provides durability and resistance to wear and tear.
Top product applications:
- Vacuum assembly for laboratory equipment, such as vacuum chambers and vacuum pumps, where a reliable and durable suction cup is required.
- Automotive industry for applications such as vacuum lifters and jacks, where a high vacuum pressure and specific pad shape are necessary.
- Robotics and automation for applications such as robotic grippers and vacuum lifters, where a precise and reliable suction cup is required to handle delicate or heavy objects.
Item Vacuum Pad Assembly, Adapter Material Aluminum, Durometer 55 A, Maximum Vacuum Pressure -0.6 bar, Number of Folds 2.5, Outside Diameter 32 mm, Overall Height 52.5 mm, Pad Color Black, Pad Diameter 33.5 mm, Hardness 55 Shore A, Pad Height 41.5 mm, Pad Material NBR, Pad Type Multi-Bellows, Port Size 1/4 in, Port Type G, Series FSG, Standards DIN ISO 3302-1 M3, Stroke 15 mm, Weight 17 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 13 days
- Minimum Order Quantity: 10
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 0.10
