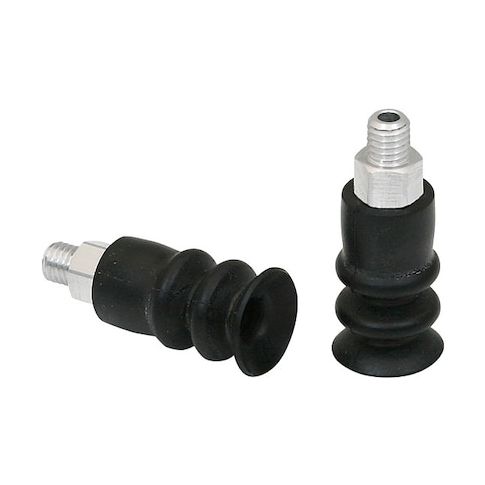

Bellow Suction Cup, 2.5 MPN:10.01.05.01045
Bellow Suction Cup, 2.5
The SCHMALZ Bellow Suction Cup is a versatile and reliable vacuum pad assembly designed for various applications. Its multi-bellows design and high vacuum pressure of -0.6 bar ensure secure gripping and lifting of heavy loads. Made from durable aluminum and NBR materials, this suction cup is suitable for use in industries such as manufacturing, logistics, and robotics. Its compact size and lightweight design make it easy to integrate into existing systems. With a lead time of just one day and a minimum order quantity of 10, this suction cup is an ideal solution for businesses looking to streamline their operations and improve efficiency.
Top product features:
- Multi-Bellows design for improved suction and flexibility
- Vacuum Pad is made of NBR material for durability and resistance to wear
- Maximum vacuum pressure is -0.6 bar for secure attachment
Top product applications:
- Vacuum lifting of flat or irregularly shaped objects
- Handling of sensitive or fragile parts in manufacturing processes
- Assembly and disassembly of components in tight spaces
Item Vacuum Pad Assembly, Adapter Material Aluminum, Durometer 55 A, Maximum Vacuum Pressure -0.6 bar, Number of Folds 2.5, Outside Diameter 12 mm, Overall Height 31 mm, Pad Color Black, Pad Diameter 13 mm, Hardness 55 Shore A, Pad Height 26 mm, Pad Material NBR, Pad Type Multi-Bellows, Port Size M5, Port Type Metric, Series FSG, Standards DIN ISO 3302-1 M3, Stroke 7 mm, Weight 2.2 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 10
- Unit of Measure: EA
- Package Length: 11.30
- Package Width: 8.80
- Package Height: 6.00
- Package Weight: 0.16
