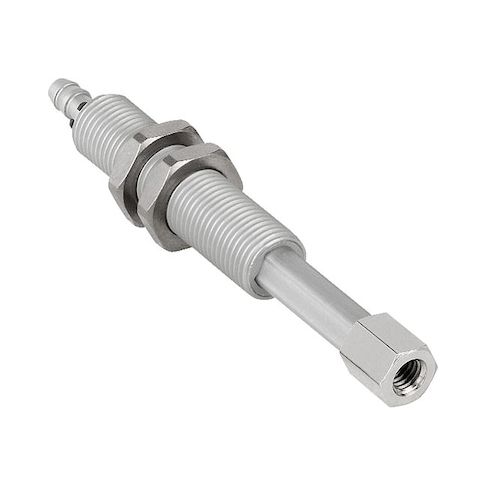

Spring plunger with internal spring MPN:10.01.02.01293
Spring plunger with internal spring
The SCHMALZ Spring Plunger with internal spring is a versatile and reliable component suitable for a variety of applications. Its electrically insulating properties make it ideal for use in sensitive electronic systems. The plunger's external mounting screw and M10 thread size provide a secure and adjustable connection. Its compact size and low spring force make it suitable for use in tight spaces and applications requiring precise control. The plunger's temperature range of 0-80°C allows for use in a wide range of environments. It is suitable for use in automation, robotics, and other applications where precise control and reliability are essential.
Top product features:
- Internal spring provides a buffer against vacuum fluctuations.
- External mounting screw size M10 allows for secure attachment to various surfaces.
- Pad end port size M5 enables connection to compatible devices.
Top product applications:
- Vacuum systems for laboratory equipment
- Automotive applications for shock absorption and vibration reduction
- Medical devices for smooth movement and precise positioning
Item Vacuum Buffer, Buffer Rotation Rotation Lock, Electrically Insulating Insulating, External Mounting Screw Size M10, External Mounting Thread Pitch 1 mm, External Mounting Thread Size M10, Hex Size 8 mm, 14 mm, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature 0 Degrees C, Outside Diameter 10 mm, Overall Length 59.2 mm, Pad End Port Gender Female, Pad End Port Size M5, Pad End Port Type Metric, Series FSTIm, Spring Force 1.02 N, Spring Rate 0.05 N/mm
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 13 days
- Minimum Order Quantity: 6
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 0.09
Product info last updated on April 8, 2026 7:00pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
