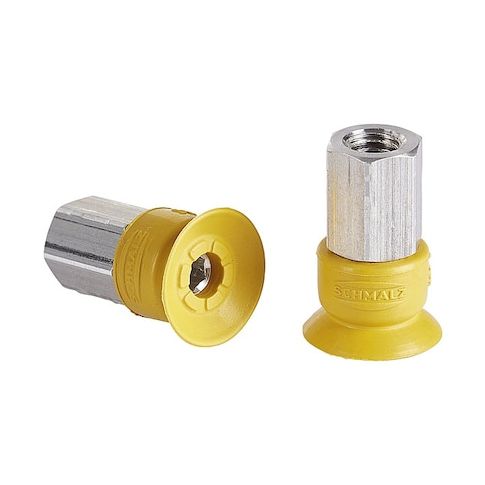

Flat Suction Cup MPN:10.01.01.14163
Flat Suction Cup
The SCHMALZ Flat Suction Cup is a versatile and reliable vacuum pad assembly designed for a variety of applications. With a maximum vacuum pressure of -0.6 bar and a hardness of 55 Shore A, this suction cup provides a strong and consistent grip. Its flat design and compact size make it ideal for use in robotics, automation, and other precision applications. The cup's ESD material ensures safe handling of sensitive electronics, while its yellow color provides visual indication of its presence. Suitable for use in a range of industries, including manufacturing, logistics, and research.
Top product features:
- Flat design allows for easy installation and reduced obstruction
- Maximum vacuum pressure of -0.6 bar enables strong adhesion to surfaces
- Pad material NBR-ESD provides electrical conductivity and static dissipation
Top product applications:
- Robotics and automation
- Automotive manufacturing
- Electronics assembly
Item Vacuum Pad Assembly, Durometer 55 A, Maximum Vacuum Pressure -0.6 bar, Number of Folds 0, Outside Diameter 12 mm, Overall Height 24.1 mm, Pad Color Yellow, Pad Diameter 13.2 mm, Hardness 55 Shore A, Pad Height 18.6 mm, Pad Material NBR-ESD, Pad Type Flat, Port Size M5, Port Type Metric, Series SUF, Stroke 1.2 mm, Weight 1.9 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 13 days
- Minimum Order Quantity: 10
- Unit of Measure: EA
- Package Length: 11.25
- Package Width: 8.75
- Package Height: 6.00
- Package Weight: 0.04
