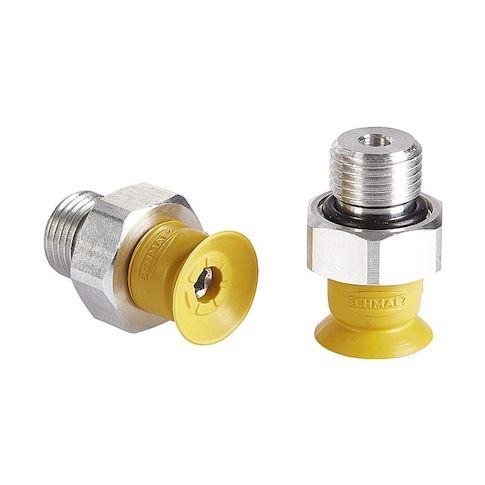

Flat Suction Cup MPN:10.01.01.14121
Flat Suction Cup
The SCHMALZ Flat Suction Cup is a versatile and reliable vacuum pad assembly designed for a variety of applications. With a maximum vacuum pressure of -0.6 bar and a flat, smooth surface, it provides consistent and secure grip on smooth surfaces. The cup's small size and lightweight design make it ideal for use in robotics, automation, and other precision applications. Its ESD-safe NBR material ensures safe handling of sensitive electronic components. The cup's compact size and ease of integration make it a great choice for use in tight spaces and complex systems, reducing downtime and increasing productivity.
Top product features:
- Flat design for easy mounting and reduced obstruction
- Maximum vacuum pressure of -0.6 bar for secure adhesion
- Pad material NBR-ESD for electrostatic discharge protection
Top product applications:
- Automotive Industry: The flat suction cup can be used in the automotive industry for various applications such as holding parts in place during assembly or testing.
- Robotics and Automation: The product can be used in robotics and automation to provide a stable and secure grip on surfaces, allowing for precise movement and manipulation of objects.
- Medical Equipment: The flat suction cup can be used in medical equipment to hold medical devices or samples in place during procedures or testing.
Item Vacuum Pad Assembly, Durometer 55 A, Maximum Vacuum Pressure -0.6 bar, Number of Folds 0, Outside Diameter 15 mm, Overall Height 22.5 mm, Pad Color Yellow, Pad Diameter 16.8 mm, Hardness 55 Shore A, Pad Height 15 mm, Pad Material NBR-ESD, Pad Type Flat, Port Size 1/8 in, Port Type G, Series SUF, Stroke 1.5 mm, Weight 4.7 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 13 days
- Minimum Order Quantity: 10
- Unit of Measure: EA
- Package Length: 11.25
- Package Width: 8.75
- Package Height: 6.00
- Package Weight: 0.04
Product info last updated on February 16, 2026 5:00pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
