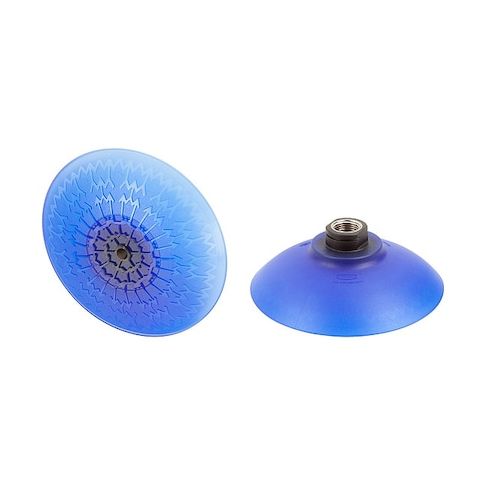

Bell Suction Cup for Sheet handling MPN:10.01.19.00155
Bell Suction Cup for Sheet handling
The SCHMALZ Bell Suction Cup for Sheet handling is a reliable and efficient solution for various industries. Designed for handling sheet metal, this suction cup assembly features a durable Elastodur ED pad with a hardness of 85 Shore A, ensuring a secure grip on sheets with 0 folds. With its compact design and deep pad, it can handle a wide range of sheet sizes and weights. Suitable for applications in metal fabrication, manufacturing, and warehousing, this suction cup assembly provides a cost-effective and labor-saving solution for sheet handling, reducing the risk of damage and improving productivity.
Top product features:
- Deep suction cup design for handling sheet metal
- Elastodur ED material for high durability and resistance to wear
- Stroke of 17.3 mm for precise control and maneuverability
Top product applications:
- Sheet metal handling
- Automotive manufacturing
- Heavy machinery assembly
Item Vacuum Pad Assembly, Durometer 85 A, For Use With Handling Sheet Metal, Number of Folds 0, Outside Diameter 100 mm, Overall Height 51.7 mm, Pad Color Blue, Pad Diameter 111.1 mm, Hardness 85 Shore A, Pad Height 39.7 mm, Pad Material Elastodur ED, Pad Type Deep, Port Size 3/8 in, Port Type NPT, Series SAX, Stroke 17.3 mm, Weight 51 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 5
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 0.30
