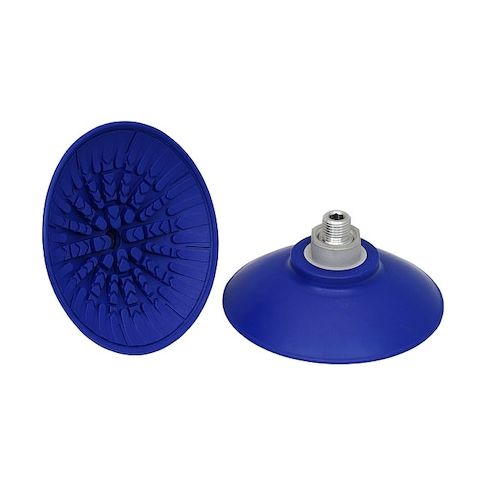

Flat Suction Cup for Sheet handling MPN:10.01.01.10624
Flat Suction Cup for Sheet handling
The SCHMALZ Flat Suction Cup is a reliable and efficient solution for handling sheet metal in various industries. With its durable aluminum adapter and NBR pad, this vacuum pad assembly provides a secure grip on flat surfaces, ensuring smooth and consistent handling. Its high vacuum pressure of -0.6 bar and flat design make it ideal for applications such as metal fabrication, woodworking, and material handling. The compact size and lightweight design also make it easy to integrate into existing systems, reducing downtime and increasing productivity. Suitable for heavy-duty use in demanding environments.
Top product features:
- Flat suction cup design for handling sheet metal
- Vacuum pressure of -0.6 bar for secure grip
- Pad material NBR for durability and resistance to wear
Top product applications:
- Sheet metal handling
- Handling thin metal sheets
- Picking and placing sheet metal parts
Item Vacuum Pad Assembly, Adapter Material Aluminum, Durometer 60 A, For Use With Handling Sheet Metal, Maximum Vacuum Pressure -0.6 bar, Number of Folds 0, Outside Diameter 100 mm, Overall Height 46 mm, Pad Color Blue, Pad Diameter 110 mm, Hardness 60 Shore A, Pad Height 36 mm, Pad Material NBR, Pad Type Flat, Port Size 1/4 in, Port Type G, Series SAF, Standards DIN ISO 3302-1 M3, Stroke 9.5 mm, Weight 76.3 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 13 days
- Minimum Order Quantity: 5
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 0.30
Product info last updated on March 12, 2026 1:50pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
