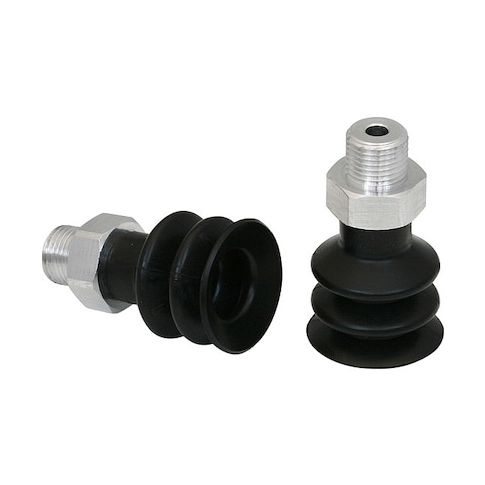

Bellow Suction Cup, 2.5 MPN:10.01.06.00028
Bellow Suction Cup, 2.5
This SCHMALZ Bellow Suction Cup is a versatile and reliable vacuum pad assembly designed for a variety of applications. Its multi-bellows design provides a secure grip on surfaces, while its aluminum adapter material and 55 Shore A hardness ensure durability and resistance to wear. With a maximum vacuum pressure of -0.6 bar and a stroke of 9 mm, this suction cup is ideal for use in automation, robotics, and material handling systems. Its compact size and lightweight design make it easy to integrate into existing systems, while its high-quality construction ensures reliable performance over time.
Top product features:
- Multi-Bellows design provides a flexible and adjustable suction surface
- Vacuum pressure up to -0.6 bar allows for secure attachment to various surfaces
- Pad material NBR offers resistance to oil, fuel, and other chemicals
Top product applications:
- Vacuum lifting of small metal parts in the electronics industry
- Handling of delicate glass or ceramic components in the laboratory or medical equipment manufacturing
- Assembly of small mechanical parts in the automotive or aerospace industry
Item Vacuum Pad Assembly, Adapter Material Aluminum, Durometer 55 A, Maximum Vacuum Pressure -0.6 bar, Number of Folds 2.5, Outside Diameter 20 mm, Overall Height 35.6 mm, Pad Color Black, Pad Diameter 21 mm, Hardness 55 Shore A, Pad Height 28.1 mm, Pad Material NBR, Pad Type Multi-Bellows, Port Size 1/8 in, Port Type G, Series FSG, Standards DIN ISO 3302-1 M3, Stroke 9 mm, Weight 6 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 13 days
- Minimum Order Quantity: 10
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 10.00
- Package Height: 10.00
- Package Weight: 0.10
