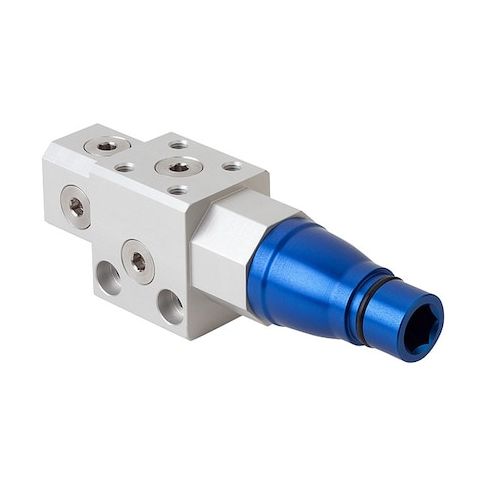

Multistage Ejector MPN:10.02.01.01724
Multistage Ejector
The Multistage Ejector from SCHMALZ is a versatile and reliable solution for a variety of applications, including material handling and process control. This compact ejector is designed to efficiently manage airflow and pressure, making it ideal for use in manufacturing, packaging, and laboratory settings. With its ability to handle high flow rates and temperatures, the Multistage Ejector is perfect for applications where precise control and reliability are crucial. Its compact design and ease of integration make it a valuable addition to any system, providing improved performance and efficiency in a range of industries and applications.
Top product features:
- Multistage Ejector provides a two-stage vacuum generation for efficient removal of materials.
- It has a maximum flow rate of 5.39 cfm, allowing for high-capacity material handling.
- It operates at a maximum temperature of 60 Degrees C, enabling use in a wide range of environments.
Top product applications:
- Vacuum conveying systems for powder and granular materials
- Material handling systems in the food and pharmaceutical industries
- Automated manufacturing processes in the automotive and aerospace sectors
Item Multistage Ejector, Actuation Mechanism Pressure, Air Consumption 3.64 cfm, Maximum Flow Rate 5.39 cfm, Maximum Operating Temperature 60 Degrees C, Maximum Supply Pressure 6 bar, Maximum Vacuum Pressure 6 bar, Minimum Operating Temperature 0 Degrees C, Minimum Supply Pressure 2 bar, Minimum Vacuum Pressure 2 bar, Nozzle Diameter 1.6 mm, Number of Stages 2, Overall Depth 35 mm, Overall Height 44 mm, Overall Length 138.5 mm, Pressure Port Gender Female, Pressure Port Size 1/4 in
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 13 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 3.50
- Package Height: 3.00
- Package Weight: 0.77
Product info last updated on February 16, 2026 10:40am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
