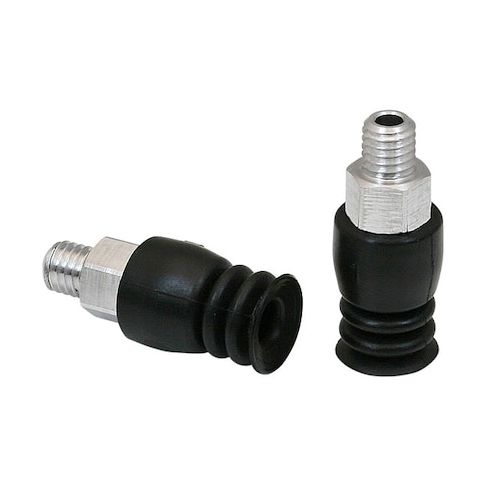

Bellow Suction Cup, 2.5 MPN:10.01.06.00023
Bellow Suction Cup, 2.5
This compact Bellow Suction Cup from SCHMALZ is designed for precise and reliable vacuum gripping in a variety of applications. The multi-bellows design provides a consistent seal, even on uneven surfaces, while the aluminum adapter and NBR pad ensure durability and resistance to wear. With a maximum vacuum pressure of -0.6 bar and a stroke of 3mm, this suction cup is ideal for use in robotics, automation, and medical devices. Its small size and low weight make it perfect for use in tight spaces, and its quick lead time ensures that you can get the parts you need when you need them.
Top product features:
- Multi-Bellows design for increased suction and adaptability
- Vacuum Pad Assembly with Adapter Material Aluminum for enhanced durability and resistance to corrosion
- Maximum Vacuum Pressure of -0.6 bar for effective sealing and holding capabilities
Top product applications:
- Vacuum gripping of small components in the electronics industry
- Robotic assembly and handling of precision parts
- Automated pick-and-place of delicate items in the medical device industry
Item Vacuum Pad Assembly, Adapter Material Aluminum, Durometer 55 A, Maximum Vacuum Pressure -0.6 bar, Number of Folds 2.5, Outside Diameter 9 mm, Overall Height 25 mm, Pad Color Black, Pad Diameter 9.5 mm, Hardness 55 Shore A, Pad Height 20 mm, Pad Material NBR, Pad Type Multi-Bellows, Port Size M5, Port Type Metric, Series FSG, Standards DIN ISO 3302-1 M3, Stroke 3 mm, Weight 1.8 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.30
- Package Width: 4.20
- Package Height: 1.50
- Package Weight: 0.16
Product info last updated on February 4, 2026 8:28am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
