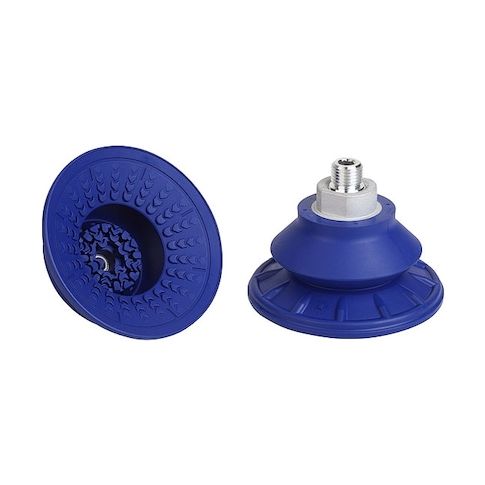

Bellow Suction cup for Sheet handling MPN:10.01.06.00806
Bellow Suction cup for Sheet handling
The SCHMALZ Bellow Suction Cup for Sheet handling is a versatile and reliable tool for handling sheet metal. With its durable aluminum construction and NBR pad material, it can withstand high vacuum pressures and maintain a secure grip on a variety of sheet metal surfaces. Ideal for industries such as manufacturing, fabrication, and assembly, this suction cup provides smooth and efficient sheet handling, reducing the risk of damage and increasing productivity. Its compact design and lightweight construction also make it easy to integrate into existing workflows, making it a valuable addition to any sheet metal handling operation.
Top product features:
- Vacuum Pad Assembly is designed for handling sheet metal.
- The product has a maximum vacuum pressure of -0.6 bar.
- The pad is made of NBR material with a hardness of 60 Shore A.
Top product applications:
- Sheet metal handling
- Handling large sheets of metal
- Automated sheet metal processing
Item Vacuum Pad Assembly, Adapter Material Aluminum, Durometer 60 A, For Use With Handling Sheet Metal, Maximum Vacuum Pressure -0.6 bar, Number of Folds 1.5, Outside Diameter 80 mm, Overall Height 59.9 mm, Pad Color Blue, Pad Diameter 89 mm, Hardness 60 Shore A, Pad Height 49.9 mm, Pad Material NBR, Pad Type Bellows, Port Size 1/4 in, Port Type G, Series SAB, Standards DIN ISO 3302-1 M3, Stroke 22.1 mm, Weight 72.1 g
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.90
- Package Width: 5.00
- Package Height: 3.30
- Package Weight: 0.92
