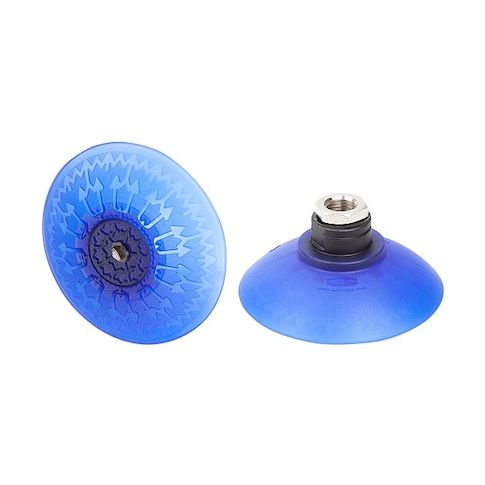

Bell Suction Cup for Sheet handling MPN:10.01.19.00183
Bell Suction Cup for Sheet handling
The SCHMALZ Bell Suction Cup for Sheet handling is a versatile and reliable solution for gripping and moving sheet metal in various industries. Designed for use with zero folds, this vacuum pad assembly features a deep, 92.2mm diameter pad made of Elastodur ED material, ensuring a secure grip on metal sheets. With a hardness of 85 Shore A, it provides optimal performance and durability. Suitable for applications such as metal fabrication, manufacturing, and logistics, this suction cup offers improved handling and reduced risk of damage to sheets. Its compact size and lightweight design make it easy to integrate into existing systems.
Top product features:
- Deep pad design for handling sheet metal
- Elastodur ED material for durability and resistance to wear
- Port size of 1/4 inch for connection to vacuum systems
Top product applications:
- Handling Sheet Metal
- Sheet Metal Fabrication
- Sheet Metal Cutting and Bending
Item Vacuum Pad Assembly, Durometer 85 A, For Use With Handling Sheet Metal, Number of Folds 0, Outside Diameter 80 mm, Overall Height 56.3 mm, Pad Color Blue, Pad Diameter 92.2 mm, Hardness 85 Shore A, Pad Height 41.3 mm, Pad Material Elastodur ED, Pad Type Deep, Port Size 1/4 in, Port Type G, Series SAX, Stroke 13.9 mm, Weight 48.3 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 13 days
- Minimum Order Quantity: 5
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 0.30
Product info last updated on February 14, 2026 12:53am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
