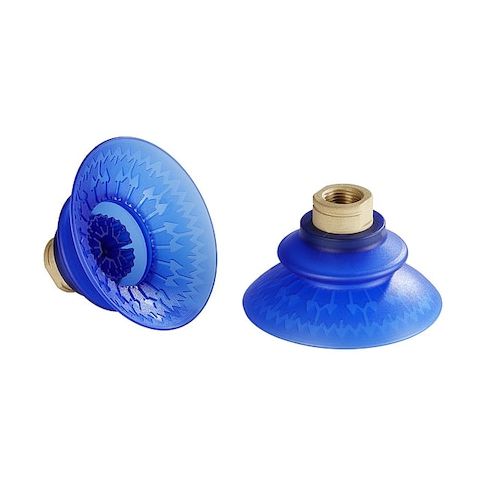

Bell Suction cup for Curved Sheet metal MPN:10.01.42.00018
Bell Suction cup for Curved Sheet metal
The SCHMALZ Bell Suction Cup for Curved Sheet Metal is a versatile and reliable tool for various applications. Suitable for use with curved sheet metal, this vacuum pad assembly features a durable brass adapter and a soft, flexible bellows design made from Elastodur ED material. With a hardness of 85 Shore A, this suction cup provides a strong grip and can withstand repeated use. Its compact size and lightweight design make it ideal for applications in industries such as manufacturing, logistics, and assembly. The Bell Suction Cup is perfect for handling curved metal components, reducing handling damage and improving workflow efficiency.
Top product features:
- For Use With Curved Sheet Metal
- Adapter Material Brass
- Pad Type Bellows
Top product applications:
- Automotive manufacturing for use in the production of curved sheet metal car parts such as hoods and trunk lids.
- Aerospace manufacturing for use in the production of curved sheet metal aircraft parts such as wings and fuselage sections.
- Medical equipment manufacturing for use in the production of curved sheet metal medical equipment such as MRI machines and hospital equipment.
Item Vacuum Pad Assembly, Adapter Material Brass, Durometer 85 A, For Use With Curved Sheet Metal, Number of Folds 1.5, Outside Diameter 80 mm, Overall Height 63 mm, Pad Color Blue, Pad Diameter 91 mm, Hardness 85 Shore A, Pad Height 50 mm, Pad Material Elastodur ED, Pad Type Bellows, Port Size 3/8 in, Port Type NPT, Series SAXB, Stroke 22.2 mm, Weight 72.8 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 5
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 0.30
