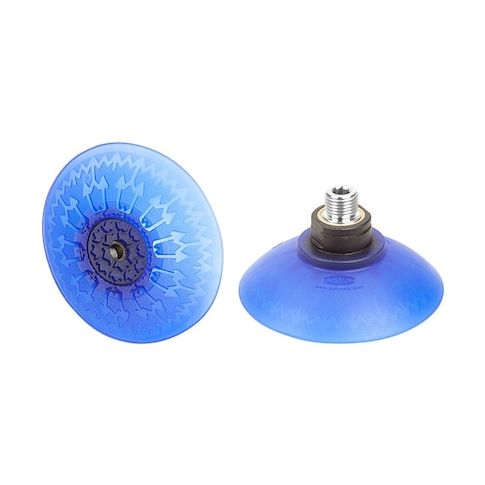

Bell Suction Cup for Sheet handling MPN:10.01.19.00217
Bell Suction Cup for Sheet handling
The SCHMALZ Bell Suction Cup for Sheet handling is a reliable and efficient solution for handling sheet metal. Designed for use in various industries, this suction cup provides a secure grip on smooth surfaces, allowing for smooth and controlled movement of sheets. The deep pad design and high-durometer material ensure a strong vacuum hold, reducing the risk of sheet damage and improving overall handling efficiency. With its compact size and lightweight design, this suction cup is ideal for applications where space and weight are a concern, such as in manufacturing, assembly, and material handling environments.
Top product features:
- Deep pad design for handling sheet metal with multiple folds
- Elastodur ED material for durability and resistance to wear
- Port size of 1/4 in and port type G for flexible vacuum fitting options
Top product applications:
- Sheet metal handling
- Automotive manufacturing
- Metalworking and fabrication
Item Vacuum Pad Assembly, Durometer 85 A, For Use With Handling Sheet Metal, Number of Folds 0, Outside Diameter 80 mm, Overall Height 49 mm, Pad Color Blue, Pad Diameter 92.2 mm, Hardness 85 Shore A, Pad Height 34.5 mm, Pad Material Elastodur ED, Pad Type Deep, Port Size 1/4 in, Port Type G, Series SAX, Stroke 13.9 mm, Weight 43.5 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 13 days
- Minimum Order Quantity: 5
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 0.30
Product info last updated on February 14, 2026 6:00pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
