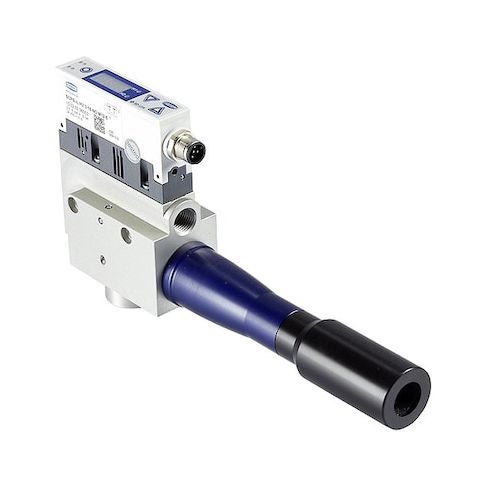

Multistage Compact Ejector MPN:10.02.02.06056
Multistage Compact Ejector
The Multistage Compact Ejector from SCHMALZ is a powerful and efficient solution for various industrial applications. This compact ejector is designed for use in vacuum systems, where it can handle high flow rates and pressures. Its compact design makes it ideal for use in tight spaces, while its electrical actuation mechanism provides reliable and easy control. The ejector's high air consumption and maximum flow rate make it suitable for applications such as material handling, packaging, and manufacturing. Its robust construction and durable components ensure long-lasting performance, making it a reliable choice for demanding industrial environments.
Top product features:
- Multistage design for increased ejector efficiency
- Normally closed control valve for precise flow control
- Electrical actuation mechanism for easy operation
Top product applications:
- Material handling in production lines
- Vacuum lifting of small parts in electronics manufacturing
- Assembly of delicate components in pharmaceutical production
Item Multistage Compact Ejector, Actuation Mechanism Electrical, Air Consumption 172 lpm, Control Valve Normally Closed, Electrical Connection Type 5-Pole M12 Male, Maximum Flow Rate 323 lpm, Maximum Operating Temperature 50 Degrees C, Maximum Supply Pressure 6 bar, Maximum Vacuum Pressure 6 bar, Minimum Operating Temperature 0 Degrees C, Minimum Supply Pressure 4 bar, Minimum Vacuum Pressure 4 bar, Nozzle Diameter 2 mm, Overall Depth 37.5 mm, Overall Height 109 mm, Overall Length 230 mm
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 13 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 7.00
- Package Height: 3.00
- Package Weight: 1.32
Product info last updated on February 11, 2026 8:58am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
