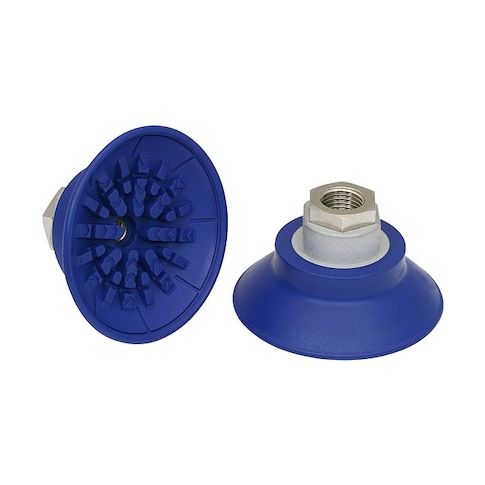

Flat Suction Cup for Sheet handling MPN:10.01.01.10689
Flat Suction Cup for Sheet handling
The SCHMALZ Flat Suction Cup is a reliable and efficient solution for handling sheet metal. Its flat design and nickel-plated adapter material ensure secure grip and long-lasting performance. With a maximum vacuum pressure of -0.6 bar and a hardness of 60 Shore A, this cup is ideal for heavy-duty applications. Its compact size and low weight make it perfect for use in manufacturing, processing, and material handling environments. The cup's durability and ease of use make it an excellent choice for industries such as automotive, aerospace, and construction, where sheet metal handling is a critical task.
Top product features:
- Handles sheet metal
- Has a maximum vacuum pressure of -0.6 bar
- Has a flat, nickel-plated suction pad with a hardness of 60 Shore A
Top product applications:
- Sheet metal handling
- Automatic sheet metal storage and retrieval systems
- Material handling in the metal industry
Item Vacuum Pad Assembly, Adapter Material Nickel Plated, Durometer 60 A, For Use With Handling Sheet Metal, Maximum Vacuum Pressure -0.6 bar, Number of Folds 0, Outside Diameter 60 mm, Overall Height 51 mm, Pad Color Blue, Pad Diameter 67 mm, Hardness 60 Shore A, Pad Height 36 mm, Pad Material NBR, Pad Type Flat, Port Size 1/4 in, Port Type G, Series SAF, Standards DIN ISO 3302-1 M3, Stroke 6 mm, Weight 37.1 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 13 days
- Minimum Order Quantity: 5
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 0.30
