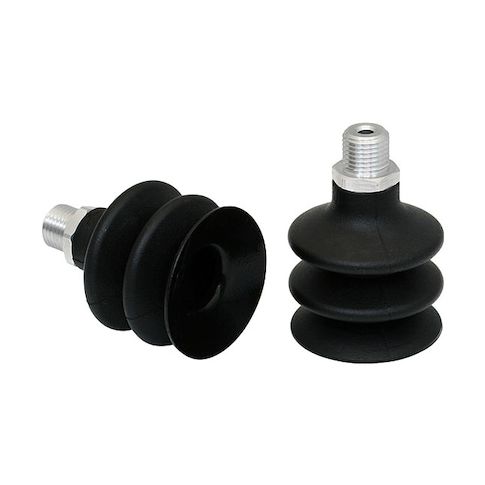

Bellow Suction Cup, 2.5 MPN:10.01.06.00031
Bellow Suction Cup, 2.5
The SCHMALZ Bellow Suction Cup is a versatile and reliable vacuum pad assembly designed for heavy-duty applications. Its 2.5-fold multi-bellows design provides a strong and stable vacuum seal, while its aluminum adapter material ensures durability and resistance to wear. With a maximum vacuum pressure of -0.6 bar and a hardness of 55 Shore A, this suction cup is ideal for use in manufacturing, assembly, and testing environments. Its compact size and lightweight design make it easy to integrate into existing systems, and its black color provides a sleek and professional appearance.
Top product features:
- Multi-Bellows design for increased flexibility and adaptability
- Vacuum Pad Material NBR for optimal sealing and durability
- Maximum Vacuum Pressure of -0.6 bar for strong suction and holding power
Top product applications:
- Automotive manufacturing: used in the production of cars to secure and position parts during assembly and testing.
- Robotics and automation: integrated into robotic systems to provide a secure grip and precise positioning of components.
- Medical device manufacturing: used to secure and position medical devices, such as surgical instruments and equipment, during assembly and testing.
Item Vacuum Pad Assembly, Adapter Material Aluminum, Durometer 55 A, Maximum Vacuum Pressure -0.6 bar, Number of Folds 2.5, Outside Diameter 42 mm, Overall Height 61 mm, Pad Color Black, Pad Diameter 45 mm, Hardness 55 Shore A, Pad Height 50 mm, Pad Material NBR, Pad Type Multi-Bellows, Port Size 1/4 in, Port Type G, Series FSG, Standards DIN ISO 3302-1 M3, Stroke 20 mm, Weight 27 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 13 days
- Minimum Order Quantity: 10
- Unit of Measure: EA
- Package Length: 11.25
- Package Width: 8.75
- Package Height: 6.00
- Package Weight: 0.62
Product info last updated on February 6, 2026 4:38pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
