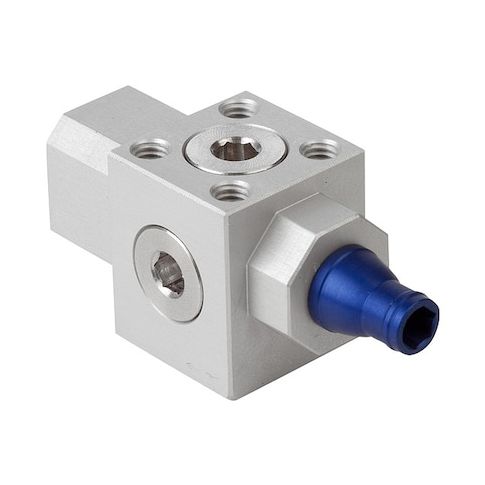

Multistage Ejector MPN:10.02.01.01716
Multistage Ejector
The Multistage Ejector from SCHMALZ is a compact and efficient solution for vacuum and pressure applications. Its two-stage design allows for precise control and high flow rates, making it ideal for use in various industries such as medical, laboratory, and aerospace. With a maximum operating temperature of 60°C and a minimum operating temperature of 0°C, this ejector can handle a wide range of applications. Its compact size and low air consumption make it a cost-effective solution for applications requiring precise vacuum and pressure control, such as sample preparation, material testing, and process control.
Top product features:
- Multistage design allows for increased flow rate and efficiency
- Operates at a maximum flow rate of 0.47 cfm
- Has a nozzle diameter of 0.4 mm, enabling precise control and flow regulation
Top product applications:
- Vacuum conveyance systems for transporting small parts, such as electronics or pharmaceutical components
- Material handling systems for applications requiring precise control over airflow and pressure
- Automated testing equipment for simulating vacuum conditions in a controlled laboratory setting
Item Multistage Ejector, Actuation Mechanism Pressure, Air Consumption 0.23 cfm, Maximum Flow Rate 0.47 cfm, Maximum Operating Temperature 60 Degrees C, Maximum Supply Pressure 6 bar, Maximum Vacuum Pressure 6 bar, Minimum Operating Temperature 0 Degrees C, Minimum Supply Pressure 2 bar, Minimum Vacuum Pressure 2 bar, Nozzle Diameter 0.4 mm, Number of Stages 2, Overall Depth 19 mm, Overall Height 22 mm, Overall Length 48 mm, Pressure Port Gender Female, Pressure Port Size 1/8 in
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 2.00
- Package Height: 1.50
- Package Weight: 0.13
Product info last updated on April 9, 2026 2:45am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
