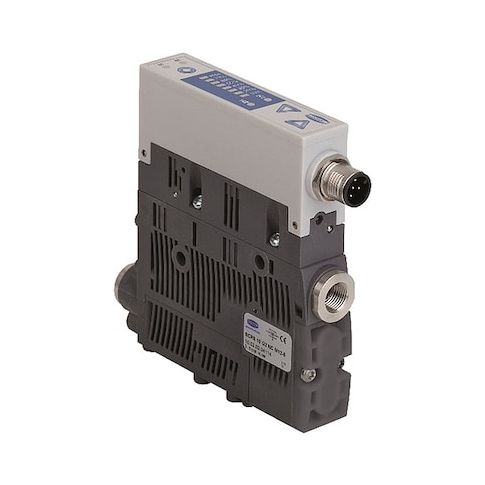

Compact Ejector MPN:10.02.02.04116
Compact Ejector
The SCHMALZ Compact Ejector is a versatile and efficient solution for various industrial applications. This compact ejector utilizes electrical actuation and a normally closed control valve to provide precise control over airflow. With a maximum flow rate of 2.31 cfm and air consumption of 3.46 cfm, it's ideal for use in applications where space is limited. The ejector's temperature range of 0-50°C and pressure range of 3-6 bar make it suitable for use in a variety of environments. Ideal for use in packaging, material handling, and other industrial processes, the SCHMALZ Compact Ejector offers reliable and efficient performance.
Top product features:
- Compact design for reduced installation space
- Electrical actuation mechanism for easy control
- Normally closed control valve for precise flow control
Top product applications:
- Automotive manufacturing for part ejection and removal
- Material handling and packaging for compact spaces
- Laboratory equipment for vacuum and pressure applications
Item Compact Ejector, Actuation Mechanism Electrical, Air Consumption 3.46 cfm, Control Valve Normally Closed, Electrical Connection Type 5-Pole M12 Male, Maximum Flow Rate 2.31 cfm, Maximum Operating Temperature 50 Degrees C, Maximum Supply Pressure 6 bar, Maximum Vacuum Pressure 6 bar, Minimum Operating Temperature 0 Degrees C, Minimum Supply Pressure 3 bar, Minimum Vacuum Pressure 3 bar, Overall Depth 18.6 mm, Overall Height 99 mm, Overall Length 105 mm, Pressure Port Gender Female
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.50
- Package Width: 5.00
- Package Height: 2.50
- Package Weight: 0.55
Product info last updated on February 9, 2026 10:18pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
