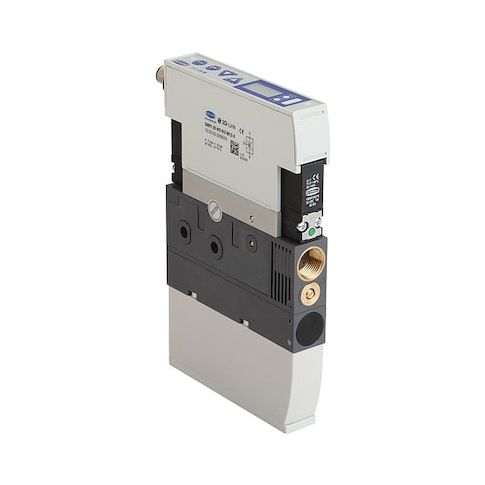

Multistage Compact Ejector MPN:10.02.02.03363
Multistage Compact Ejector
The Multistage Compact Ejector from SCHMALZ is a versatile and efficient solution for various industrial applications. This compact ejector is ideal for use in applications where space is limited, such as in robotics, packaging, and material handling systems. Its electrical actuation mechanism and normally open control valve provide precise control and easy integration into existing systems. With a maximum flow rate of 6.53 cfm and air consumption of 10.24 cfm, this ejector is suitable for a range of applications, including vacuum conveying, pneumatic transportation, and material separation. Its compact design and reliable performance make it an excellent choice for demanding industrial environments.
Top product features:
- Multistage design allows for increased airflow and efficiency
- Normally open control valve enables automatic operation
- Electrical actuation mechanism provides precise control and reliability
Top product applications:
- Vacuum lifting of heavy loads in the manufacturing and logistics industry
- Vacuum handling of sensitive or fragile items in the electronics industry
- Material handling in the food and beverage industry where gentle and clean handling is required
Item Multistage Compact Ejector, Actuation Mechanism Electrical, Air Consumption 10.24 cfm, Control Valve Normally Open, Electrical Connection Type 5-Pole M12 Male, Maximum Flow Rate 6.53 cfm, Maximum Operating Temperature 50 Degrees C, Maximum Supply Pressure 7 bar, Maximum Vacuum Pressure 7 bar, Minimum Operating Temperature 0 Degrees C, Minimum Supply Pressure 4 bar, Minimum Vacuum Pressure 4 bar, Nozzle Diameter 2.5 mm, Overall Depth 22 mm, Overall Height 181.5 mm, Overall Length 129.7 mm
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 6.50
- Package Height: 2.50
- Package Weight: 1.57
Product info last updated on February 4, 2026 12:08am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
