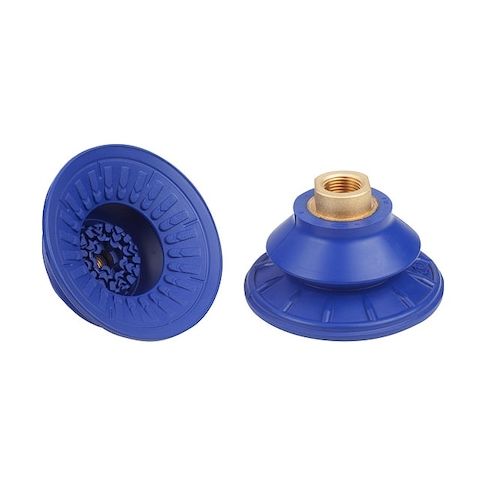

Bellow Suction cup for Sheet handling MPN:10.01.06.01973
Bellow Suction cup for Sheet handling
The SCHMALZ Bellow Suction Cup for Sheet Handling is a reliable and efficient tool for handling sheet metal. Its durable brass construction and NBR pad ensure a secure grip, even in demanding applications. With a maximum vacuum pressure of -0.6 bar and a stroke of 22.1 mm, this suction cup can handle a variety of sheet metal sizes and thicknesses. Ideal for use in industries such as manufacturing, construction, and metalworking, this suction cup provides a cost-effective and labor-saving solution for sheet handling tasks. Its compact design and easy installation make it a valuable addition to any workshop or production line.
Top product features:
- Bellow suction cup for sheet handling
- Vacuum pad assembly for handling sheet metal
- Pad material NBR provides a flexible and durable surface for vacuum suction
Top product applications:
- Sheet Metal Handling
- Automotive Body Shop Equipment
- Precision Metal Fabrication
Item Vacuum Pad Assembly, Adapter Material Brass, Durometer 60 A, For Use With Handling Sheet Metal, Maximum Vacuum Pressure -0.6 bar, Number of Folds 1.5, Outside Diameter 80 mm, Overall Height 64.9 mm, Pad Color Blue, Pad Diameter 89 mm, Hardness 60 Shore A, Pad Height 49.9 mm, Pad Material NBR, Pad Type Bellows, Port Size 3/8 in, Port Type NPT, Series SAB, Standards DIN ISO 3302-1 M3, Stroke 22.1 mm, Weight 63 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.40
- Package Width: 4.50
- Package Height: 3.00
- Package Weight: 1.24
Product info last updated on February 27, 2026 12:09am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
