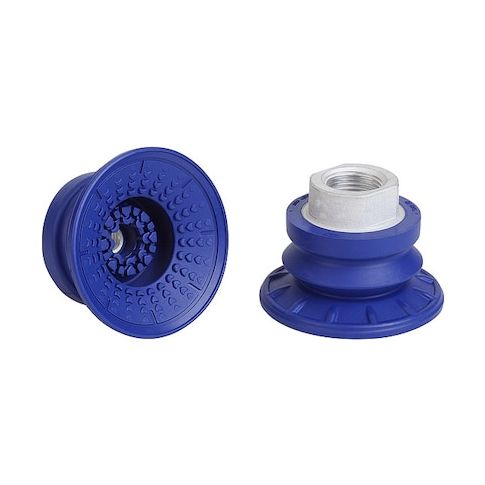

Bellow Suction cup for Sheet handling MPN:10.01.06.00672
Bellow Suction cup for Sheet handling
The SCHMALZ Bellow Suction Cup is a versatile and reliable tool for handling sheet metal with precision and ease. Its durable aluminum construction and NBR pad ensure a secure grip on metal surfaces, while the adjustable vacuum pressure allows for optimal handling of various sheet thicknesses. With a maximum vacuum pressure of -0.6 bar and a stroke of 11.5 mm, this suction cup is ideal for applications in metal processing, manufacturing, and assembly. Its compact design and lightweight construction make it perfect for use in tight spaces and high-speed production environments, increasing efficiency and reducing labor costs.
Top product features:
- Vacuum Pad Material is NBR, a durable and flexible material suitable for handling sheet metal.
- Bellows design allows for smooth and flexible movement, reducing wear and tear on the pad and the surface being handled.
- Maximum vacuum pressure of -0.6 bar provides strong suction force for secure handling of sheet metal.
Top product applications:
- Sheet metal handling in manufacturing lines
- Automated sheet metal processing in workshops
- Handling of thin sheet metal in precision engineering
Item Vacuum Pad Assembly, Adapter Material Aluminum, Durometer 60 A, For Use With Handling Sheet Metal, Maximum Vacuum Pressure -0.6 bar, Number of Folds 1.5, Outside Diameter 50 mm, Overall Height 51.9 mm, Pad Color Blue, Pad Diameter 56 mm, Hardness 60 Shore A, Pad Height 36.9 mm, Pad Material NBR, Pad Type Bellows, Port Size 3/8 in, Port Type G, Series SAB, Standards DIN ISO 3302-1 M3, Stroke 11.5 mm, Weight 32.3 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.40
- Package Width: 4.40
- Package Height: 2.50
- Package Weight: 0.43
