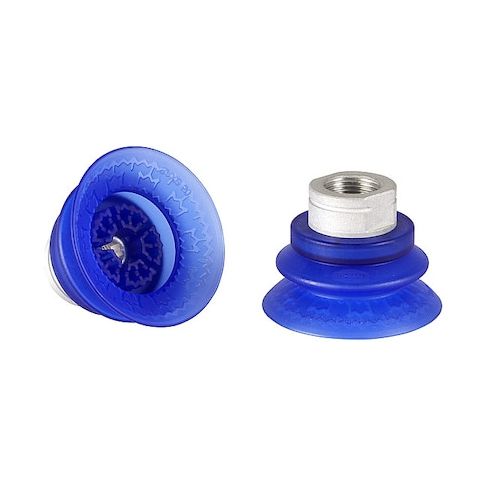

Bell Suction cup for Curved Sheet metal MPN:10.01.42.00008
Bell Suction cup for Curved Sheet metal
The SCHMALZ Bell Suction Cup for Curved Sheet Metal is a versatile and reliable solution for handling and processing curved sheet metal. Its bellows design allows for smooth and even suction, making it ideal for applications where precision and control are crucial. The cup's durable aluminum construction and Elastodur ED material ensure long-lasting performance and resistance to wear and tear. Suitable for a range of industries, including manufacturing, aerospace, and automotive, this suction cup is perfect for tasks such as sheet metal handling, forming, and machining. Its compact size and lightweight design also make it easy to integrate into existing workflows.
Top product features:
- For Use With Curved Sheet Metal
- Pad Type Bellows
- Hardness 85 Shore A
Top product applications:
- Automotive manufacturing: used to attach and detach parts in curved sheet metal production lines
- Medical equipment assembly: used to secure and move medical devices with curved surfaces
- Aerospace manufacturing: used to attach and detach parts in curved sheet metal production lines for aircraft and spacecraft components
Item Vacuum Pad Assembly, Adapter Material Aluminum, Durometer 85 A, For Use With Curved Sheet Metal, Number of Folds 1.5, Outside Diameter 50 mm, Overall Height 49.9 mm, Pad Color Blue, Pad Diameter 55 mm, Hardness 85 Shore A, Pad Height 36.9 mm, Pad Material Elastodur ED, Pad Type Bellows, Port Size 3/8 in, Port Type G, Series SAXB, Stroke 11.6 mm, Weight 26.4 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 5
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 0.10
Product info last updated on February 2, 2026 6:28pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
