Flat Suction Cup for Sheet handling MPN:10.01.01.10691

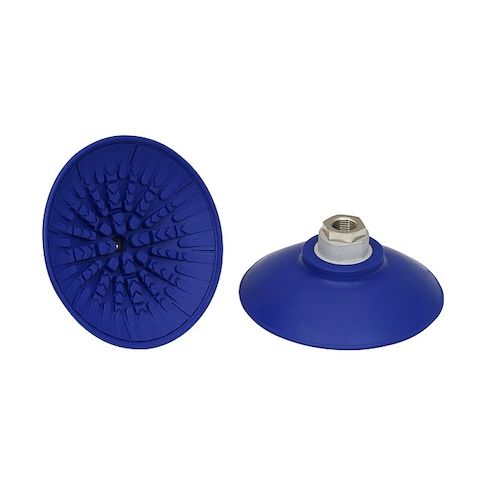

Flat Suction Cup for Sheet handling
The SCHMALZ Flat Suction Cup is a reliable and efficient solution for handling sheet metal in various industries. Its flat design and high vacuum pressure of -0.6 bar ensure secure gripping and precise control, making it ideal for applications such as metal processing, manufacturing, and logistics. The cup's nickel-plated adapter and NBR pad provide durability and resistance to wear and tear. With its compact size and lightweight design, it's easy to integrate into existing workflows, reducing labor costs and increasing productivity. Suitable for use in a variety of settings, including production lines, warehouses, and workshops.
Top product features:
- Flat suction cup design for handling sheet metal
- Vacuum pressure of -0.6 bar for effective sheet handling
- Pad material NBR for durability and resistance to wear
Top product applications:
- Sheet metal handling
- Automotive industry applications
- Glass handling in manufacturing
Item Vacuum Pad Assembly, Adapter Material Nickel Plated, Durometer 60 A, For Use With Handling Sheet Metal, Maximum Vacuum Pressure -0.6 bar, Number of Folds 0, Outside Diameter 100 mm, Overall Height 61 mm, Pad Color Blue, Pad Diameter 110 mm, Hardness 60 Shore A, Pad Height 41 mm, Pad Material NBR, Pad Type Flat, Port Size 1/4 in, Port Type G, Series SAF, Standards DIN ISO 3302-1 M3, Stroke 9.5 mm, Weight 67.4 g
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 13 days
- Minimum Order Quantity: 5
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 0.30
Product info last updated on February 24, 2026 11:06am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
