AODDPump, 1/2inNPT, PTFE, 45gpm MPN:T1FB1SASWTS600.
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G608385483
AODDPump, 1/2inNPT, PTFE, 45gpm

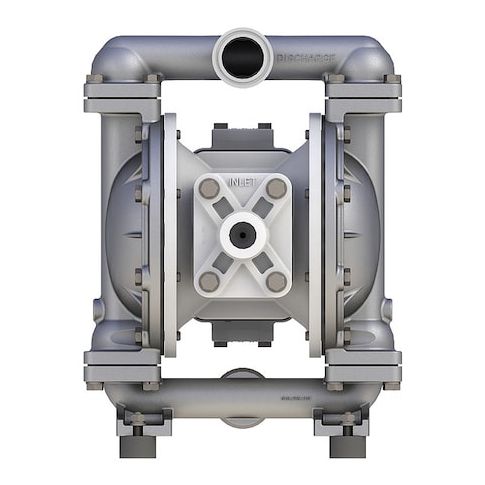

The Sandpiper Air Operated Diaphragm Pump is a reliable and efficient solution for various industrial applications. Designed for high-flow rates and pressures, this pump is ideal for transferring viscous fluids, chemicals, and other abrasive materials. With a maximum flow rate of 45 gpm and a head of up to 289 ft, it can handle demanding tasks with ease. Its stainless steel check seat and PTFE diaphragm ensure long-lasting performance and minimal maintenance. Suitable for use in chemical processing, wastewater treatment, and other industries, this pump offers a cost-effective and durable alternative to traditional pumping solutions.
Top product features:
- Air Operated Double Diaphragm Pump provides a maximum flow rate of 45 gpm.
- The pump has a maximum feet of head of 289 ft.
- The pump features a stainless steel check seat.
Top product applications:
- Chemical Transfer
- Wastewater Treatment
- Food Processing
This Sandpiper air operated double diaphragm pump has an aluminum housing with a 316 stainless steel wetted section, using bolted assembly. Diaphragm material is PTFE, with PTFE ball valves and stainless steel check seats and mounting hardware. Air intake connection is 1/2 in NPT, with a maximum operating pressure of 125 psi. Media intake and discharge connections are both 1-1/2 in Tri-Clamp (intake located bottom, discharge located top). Maximum flow rate is 45 gpm, with a maximum feet of head of 289 ft. The pump is self-priming, with a maximum solid handling size of 0.25 in diameter and maximum media temperature of 190°F. The unit is certified to CE, EC 1935, ISO, and FDA compliance standards. It carries a 5-year manufacturer's warranty and is manufactured in the United States. Specifications Housing Material: Aluminum | Wetted Housing: 316 Stainless Steel Pump Assembly Type: Bolt | Manifold Connection: Single Port Diaphragm Material: PTFE | Valve Material: PTFE | Valve Type: Ball | Check Seat Material: Stainless Steel Mounting Hardware Material: Stainless Steel Air Intake: 1/2 in NPT | Max. Operating Pressure: 125 psi Media Intake: 1-1/2 in Tri-Clamp (bottom) | Media Discharge: 1-1/2 in Tri-Clamp (top) Maximum Flow Rate: 45 gpm | Feet of Head (Max): 289 ft Priming: Self-Priming | Max. Solid Size: 0.25 in diameter Max. Media Temperature: 190°F Standards: CE Certified, EC 1935, ISO, FDA Compliant Manufacturer's Warranty: 5 yr Overall Dimensions: 12.5 in W x 10.3 in L x 14 in H Country of Origin: United States
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.90
- Package Width: 12.10
- Package Height: 14.90
- Package Weight: 43.30
Product info last updated on January 24, 2026 1:25pm UTC
Category: Positive Displacement Pumps
