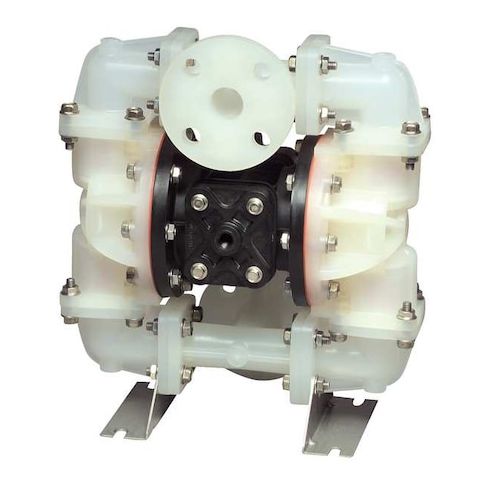

Double Diaphragm Pump, PVDF, Air Operated, PTFE, 23 gpm GPM 220 Degrees F MPN:S10B1K2KPAS000.
Double Diaphragm Pump, PVDF, Air Operated, PTFE, 23 gpm GPM 220 Degrees F
The Sandpiper Double Diaphragm Pump is a reliable and efficient solution for a wide range of applications, including chemical processing, wastewater treatment, and pharmaceutical manufacturing. Its air-operated design and PTFE diaphragms ensure smooth and quiet operation, while its PVDF construction provides excellent resistance to corrosion and chemical damage. With a maximum flow rate of 23 gpm and a maximum head of 231 ft, this pump is capable of handling demanding applications. Its compact design and easy maintenance make it an ideal choice for industries requiring high-performance pumping solutions.
Top product features:
- Air Operated Design
- Maximum Flow Rate of 23 gpm
- Maximum Head of 231 ft
Top product applications:
- Chemical Processing: The pump's PVDF and PTFE materials make it suitable for handling aggressive chemicals in chemical processing applications.
- Water Treatment: The pump's ability to handle high temperatures (up to 220°F) and its air-operated design make it a good fit for water treatment applications where high pressure and temperature are involved.
- Food and Beverage: The pump's PTFE and PVDF materials are food-grade and can handle liquids with high viscosity, making it suitable for applications in the food and beverage industry.
Double Diaphragm Pump, Air Consumption (Maximum) 20 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type Flange, Check Seat Material PVDF, Diaphragm Material PTFE, Feet of Head (Maximum) 231 ft, Flow Rate (Maximum) 23 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 in, Media Discharge Connection Type Flange, Media Discharge Location Center, Top, Media Intake Connection Size 1 in, Media Intake Connection Type Flange, Media Intake Location Bottom, Center
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.40
- Package Width: 13.00
- Package Height: 14.80
- Package Weight: 18.00
Product info last updated on February 15, 2026 5:58pm UTC
Category: Positive Displacement Pumps
