Double Diaphragm Pump, Cast iron, Air Operated, 106 GPM 220 Degrees F MPN:S15B1I2TANS000.

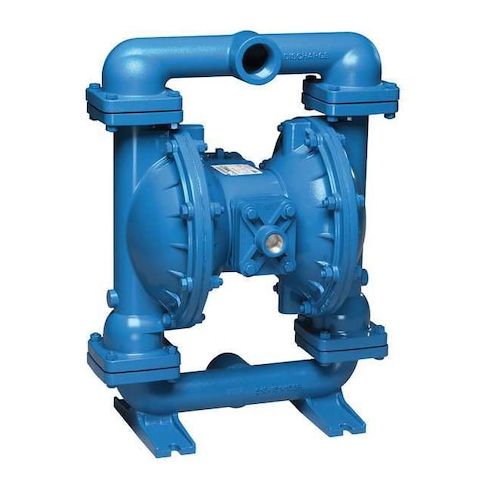

Double Diaphragm Pump, Cast iron, Air Operated, 106 GPM 220 Degrees F
The Sandpiper Double Diaphragm Pump is a powerful and reliable solution for demanding fluid transfer applications. With a maximum flow rate of 106 GPM and a head of up to 289 feet, it's ideal for pumping high-viscosity fluids, slurries, and corrosive chemicals in industries such as oil and gas, mining, and wastewater treatment. The pump's air-operated design provides efficient and low-maintenance operation, while its PTFE diaphragms and check seats ensure durability and resistance to corrosion. Its compact design and versatility make it suitable for a wide range of applications, including chemical transfer, sludge pumping, and frac sand transfer.
Top product features:
- Cast iron construction
- Air operated for increased efficiency and reduced power requirements
- PTFE diaphragm and check seat for chemical resistance and long lifespan
Top product applications:
- Chemical Transfer and Handling
- Water Treatment and Filtration Systems
- Food and Beverage Processing
Double Diaphragm Pump, Air Consumption (Maximum) Not Applicable, Air Intake Connection Size 1 1/2 in, Air Intake Connection Type NPT, Check Seat Material PTFE, Diaphragm Material PTFE, Feet of Head (Maximum) 289 ft, Flow Rate (Maximum) 106 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 1/2 in, Media Discharge Connection Type NPT, Media Discharge Location Top, Media Intake Connection Size 1 1/2 in, Media Intake Connection Type NPT, Media Intake Location Bottom
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 14.00
- Package Height: 22.80
- Package Weight: 102.00
Product info last updated on March 9, 2026 5:07am UTC
Category: Positive Displacement Pumps
