Double Diaphragm Pump, Aluminum, Air Operated, PTFE - Neoprene Backup MPN:HDB1 1/2, SGN8A.

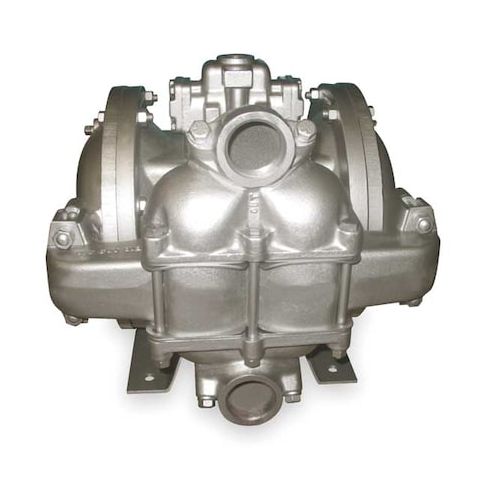

Double Diaphragm Pump, Aluminum, Air Operated, PTFE - Neoprene Backup
The Sandpiper Double Diaphragm Pump is a reliable and efficient solution for a variety of applications, including chemical transfer, wastewater treatment, and sludge handling. Its air-operated design allows for easy operation and maintenance, while the PTFE-Neoprene backup ensures durability and resistance to corrosion. With a maximum flow rate of 122 gpm and a head of up to 289 ft, this pump is suitable for demanding applications. Its compact design and single port manifold connection make it easy to integrate into existing systems, making it an ideal choice for industries requiring a reliable and versatile pumping solution.
Top product features:
- Air operated for efficient and reliable operation
- PTFE-Neoprene backup for added durability and resistance to chemicals
- 316 Stainless Steel check seat for long-lasting wear and corrosion resistance
Top product applications:
- Wastewater treatment: The double diaphragm pump's high flow rate and maximum head of 289 ft make it suitable for handling wastewater in municipal or industrial applications.
- Chemical transfer: The pump's PTFE-neoprene backup and neoprene diaphragm material make it resistant to a wide range of chemicals, making it suitable for chemical transfer applications.
- Food and beverage processing: The pump's stainless steel check seat and neoprene diaphragm material make it suitable for handling food and beverage products, and the pump's design allows for easy cleaning and sanitizing.
Double Diaphragm Pump, Air Consumption (Maximum) Not Applicable, Air Intake Connection Size 3/4 in, Air Intake Connection Type NPT, Check Seat Material 316 Stainless Steel, Diaphragm Material Neoprene, Feet of Head (Maximum) 289 ft, Flow Rate (Maximum) 122 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 1/2 in, Media Discharge Connection Type NPT, Media Discharge Location Bottom, Media Intake Connection Size 1 1/2 in, Media Intake Connection Type NPT
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.10
- Package Width: 17.90
- Package Height: 21.60
- Package Weight: 72.55
Product info last updated on March 3, 2026 5:26pm UTC
Category: Positive Displacement Pumps
