Coupling Hub, Oldham Set Screw, 9mm MPN:MOST25-9-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9686162

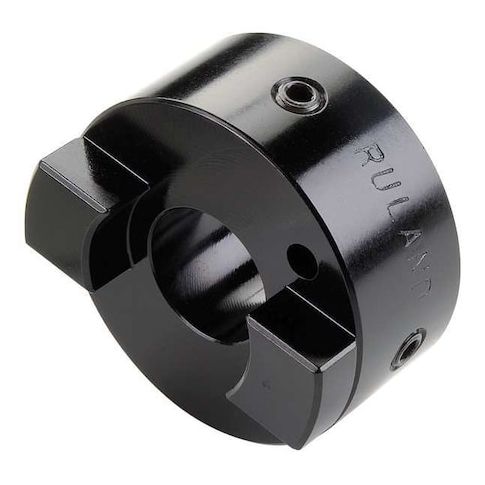

Coupling Hub, Oldham Set Screw, 9mm
The RULAND Coupling Hub is a precision motion control coupling designed for applications requiring high accuracy and reliability. This Oldham style coupling features a 0.5 degree angular misalignment and 0.1 mm axial motion, making it ideal for applications such as robotics, CNC machinery, and medical devices. Its aluminum construction and set screw shaft locking ensure secure and precise operation, while its compact design and low weight make it suitable for high-speed applications up to 4,500 RPM. The Coupling Hub is a versatile solution for engineers seeking to optimize system performance and minimize downtime.
Top product features:
- Angular misalignment up to 0.5 degrees
- Axial motion up to 0.1 mm
- Shaft locking via set screw
Top product applications:
- Power transmission in robotics and automation systems
- High-speed motor drives and gearboxes
- Precision machinery and equipment
Motion Control Coupling Hub, Angular Misalignment 0.5 Degrees , Axial Motion 0.1 mm, Coupling Size MOST25, Outside Diameter 25.4 mm, Over-Standard Parallel Misalignment 2.54 mm, Parallel Misalignment 0.2 mm, Coupling Overall Length 28.6 mm, Hub Material Aluminum, Length through Bore 9.9 mm, System of Measurement Metric, Bore Diameter 9 mm, Maximum Speed 4,500 RPM, Bore Type Round, Shaft Locking Type Set Screw, Keyway Depth Not Applicable, Keyway Width Not Applicable, Screw Seating Torque 2.2 N-m
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 3.00
- Package Height: 1.00
- Package Weight: 0.08
Product info last updated on February 9, 2026 9:18pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
