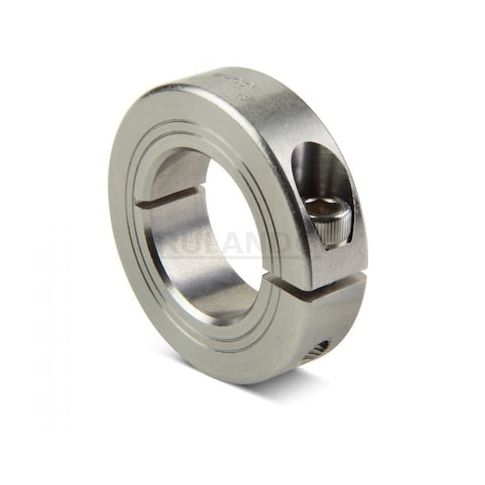

Shaft Collar, Titanium, +0.076/-0.254 mm, Clamp On MPN:MCL-16E-TI
Shaft Collar, Titanium, +0.076/-0.254 mm, Clamp On
The RULAND Shaft Collar is a high-performance titanium component designed for secure and reliable shaft attachment. Its 1-piece construction and clamp-on design make it easy to install and remove, while its titanium material provides exceptional strength-to-weight ratio and corrosion resistance. Suitable for applications in aerospace, medical, and industrial settings, this shaft collar is ideal for use in high-stress environments where precision and durability are critical. Its metric with inch bore and round bore diameter make it a versatile component for various machinery and equipment, including robotics, gearboxes, and conveyor systems.
Top product features:
- Titanium construction provides high strength and low weight
- Clamp-on design allows for easy installation and removal
- Keyway width not applicable implies a secure and precise fit
Top product applications:
- Bearings and shafts in aerospace applications
- High-precision machinery and equipment in the medical industry
- High-strength mechanical systems in the automotive and racing sectors
Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 1 in, Bore Thread Size Not Applicable, Collar Outside Diameter 45 mm, Inside Height to Flat Not Applicable, Clearance Diameter 52.1 mm, Collar Width 15 mm, Collar Material Titanium, Keyway Width Not Applicable, Collar Material Grade Grade 5, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 1-Piece, Screw Material Titanium
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 1.00
- Package Weight: 0.16
Product info last updated on March 11, 2026 11:31pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
