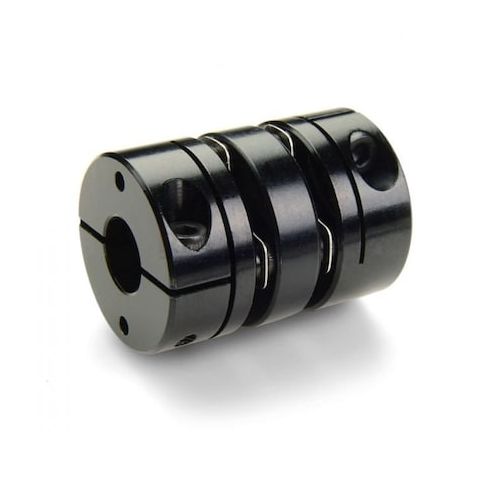

Disc Coupling MPN:MDCD70-35-25-A
Disc Coupling
The RULAND Disc Coupling is a reliable and versatile power transmission solution for various industrial applications. Its ability to handle angular misalignment of up to 2 degrees and axial motion of 0.76 mm makes it ideal for use in high-torque applications, such as conveyor systems, pumps, and gearboxes. The coupling's dynamic torque capacity of up to 48 N-m (non-reversing) and 24 N-m (reversing) ensures smooth and efficient power transmission. With a compact design and aluminum construction, the RULAND Disc Coupling is suitable for use in a wide range of industries, including manufacturing, oil and gas, and food processing.
Top product features:
- Angular misalignment up to 2 degrees
- Axial motion of 0.76 mm
- Dynamic torque capacity of up to 48 N-m in non-reversing applications
Top product applications:
- Power Generation
- Machine Tool
- Robotics
Disc Coupling, Angular Misalignment 2 Degrees , Axial Motion 0.76 mm, Bore Diameter 1 35 mm, Bore Diameter 2 25 mm, Bore Type Round, Clearance Diameter 69.9 mm, Dynamic Torque Non-Reversing 48 N-m, Hub Length 30.5 mm, Hub Material Aluminum, Dynamic Torque Reversing 24 N-m, Coupling Outside Diameter 69.9 mm, Number of Discs 2 with Center Spacer, Center Spacer Material Aluminum, Length Through Bore 1 41.9 mm, Length Through Bore 2 41.9 mm, Maximum Bore Diameter 35 mm, Minimum Bore Diameter 25 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 3.00
- Package Weight: 1.33
Product info last updated on March 6, 2026 12:03am UTC
Category: Bearings, V-belts and Power Transmission Equipment
