SHAFT COLLAR QUICK CLAMPING MPN:LV-MCL-28-AN
SHAFT COLLAR QUICK CLAMPING

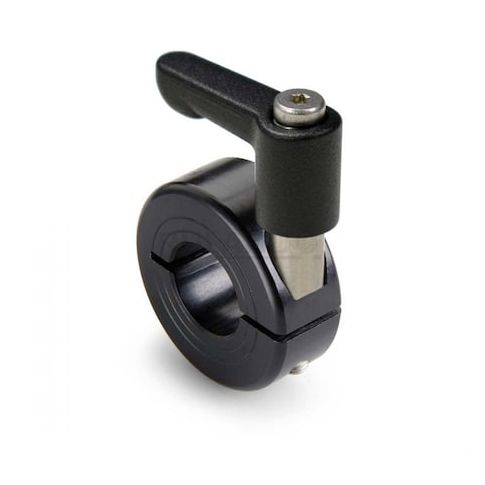

The Ruland Quick Clamping Shaft Collar is a reliable and efficient solution for applications requiring secure and adjustable shaft mounting. Made from corrosion-resistant aluminum, this 1-piece collar features a stainless steel screw for added durability. With a bore diameter of 28mm and outside diameter of 48mm, it can be easily installed on a variety of shafts. Its quick clamping mechanism allows for fast and easy adjustment, making it ideal for use in industries such as robotics, automation, and manufacturing. Its compact design and corrosion-resistant properties make it a great choice for applications in harsh environments.
Top product features:
- Quick Clamping: allows for fast and easy installation and removal of the shaft collar.
- One-Piece Construction: provides a strong and durable design.
- Corrosion-Resistant Material: protects the shaft collar from rust and corrosion.
Top product applications:
- Shaft collars are used in conveyor systems to secure and position shafts in applications such as packaging machinery.
- Shaft collars are used in power transmission systems to provide a secure and rigid connection between shafts in applications such as gearboxes and motors.
- Shaft collars are used in machine tool applications to secure and position shafts in applications such as CNC machines and lathes.
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 28 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 48 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 38.8 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion-Resistant, Screw Seating Torque 9.6 N-m
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 1.00
- Package Weight: 0.20
Product info last updated on April 26, 2026 5:39am UTC
Category: Bearings, V-belts and Power Transmission Equipment
