SHAFT COLLAR QUICK CLAMPING MPN:LV-MCL-20-A
SHAFT COLLAR QUICK CLAMPING

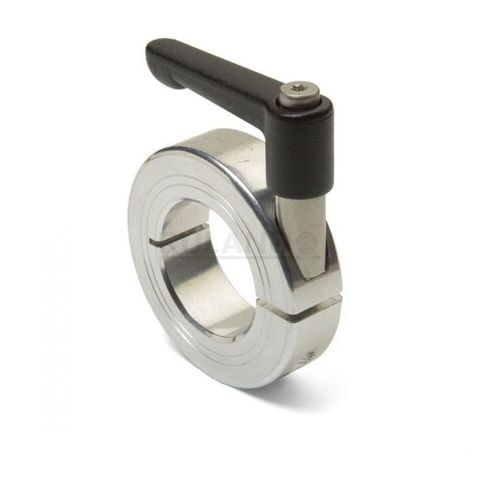

The Ruland Quick Clamping Shaft Collar is a reliable and efficient solution for various industrial applications. This aluminum shaft collar features a 1-piece construction and a stainless steel screw for secure and long-lasting performance. With a bore diameter of 20mm and an outside diameter of 40mm, it's suitable for use in a range of settings, including robotics, automation, and material handling. The quick clamping mechanism allows for easy installation and removal, reducing downtime and increasing productivity. Its compact size and lightweight design make it ideal for use in tight spaces and on rotating shafts.
Top product features:
- Quick clamping mechanism allows for easy installation and removal of the shaft collar.
- One-piece construction provides a strong and durable design.
- Stainless steel screw provides high torque resistance and corrosion resistance.
Top product applications:
- Shaft collars are commonly used in conveyor systems to secure and position pulleys, gears, and other rotating components.
- Shaft collars are used in power transmission applications such as in gearboxes, motors, and other mechanical systems to securely hold shafts in place.
- Shaft collars are used in robotic systems to provide a secure and precise fit for shafts and other rotating components, enabling smooth and reliable operation.
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 20 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 40 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 38.8 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Seating Torque 16 N-m, Bore Tolerance +0.050/+0.012 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 1.00
- Package Weight: 0.18
