Bellows Coupling MPN:MBCK80-45-35-A

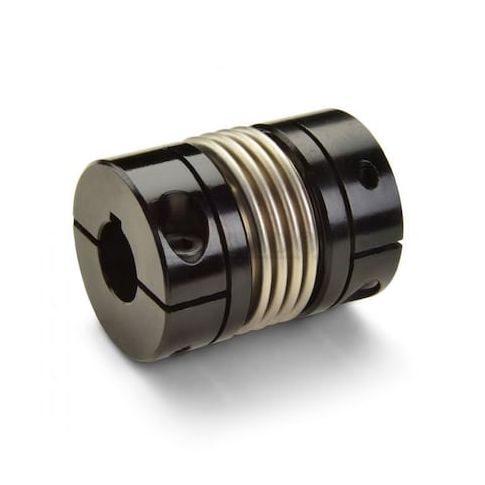

Bellows Coupling
The RULAND Bellows Coupling is a versatile and reliable connection solution for a wide range of applications. Its aluminum hubs and stainless steel bellows ensure durability and resistance to corrosion, while its clamp-on design allows for easy installation and adjustment. With a maximum speed of 10,000 RPM and a maximum torque of 152 N-m, this coupling is suitable for high-performance applications in industries such as aerospace, medical devices, and robotics. Its compact size and metric system make it an ideal choice for precision machinery and equipment. It is also available in different bore sizes to accommodate various shaft diameters.
Top product features:
- Clamp On Shaft Locking Type for secure and easy installation
- Stainless Steel Bellows Material for durability and corrosion resistance
- Maximum Torque of 152 N-m for high load handling capacity
Top product applications:
- Power transmission in hydraulic systems
- Conveying fluids in chemical processing equipment
- Transmitting power in high-speed machinery
Bellows Coupling, Bore Diameter 1 45 mm, Bore Diameter 2 35 mm, Coupling Outside Diameter 79.4 mm, Maximum Speed 10,000 RPM, Maximum Torque 152 N-m, Hub Material Aluminum, Overall Length 96.9 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 79.4 mm, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 44.5 mm, Length Through Bore 2 44.5 mm, Parallel Misalignment 0.3 mm, Bore Type Round Keyed, Dynamic Torque Non-Reversing 76 N-m
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 4.00
- Package Weight: 1.58
Product info last updated on February 2, 2026 8:11am UTC
Category: Bearings, V-belts and Power Transmission Equipment
