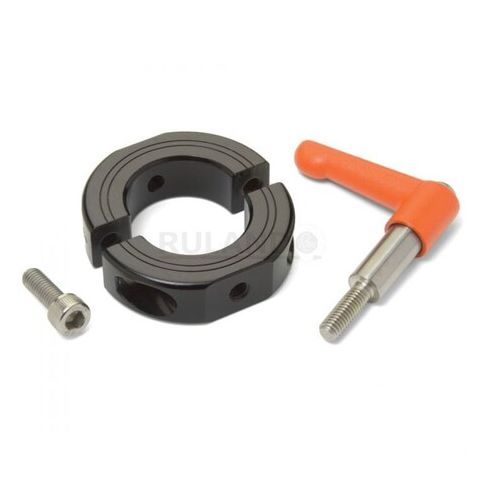

SHAFT COLLAR QUICK CLAMPING MPN:LVO-OF-MSP-16-AN
SHAFT COLLAR QUICK CLAMPING
The Ruland Quick Clamping Shaft Collar is a reliable and efficient solution for various industrial applications. Its aluminum construction and corrosion-resistant properties make it ideal for use in harsh environments. The collar's 2-piece design and stainless steel screw provide a secure and durable clamping system, ensuring a consistent and reliable connection. With a bore diameter of 16mm and outside diameter of 34mm, this shaft collar is suitable for a range of applications, including robotics, automation, and mechanical systems. Its compact size and lightweight design also make it easy to integrate into tight spaces.
Top product features:
- Quick clamping mechanism allows for easy and secure attachment to shafts
- Made from corrosion-resistant aluminum material
- Screw seating torque of 9.5 N-m provides secure and reliable holding power
Top product applications:
- Shaft collar quick clamping from Ruland can be used as a bearing protector in applications such as conveyor systems.
- The quick clamping shaft collar can be used as a positioning device in machinery and equipment.
- Shaft collar quick clamping from Ruland can be used as a bearing protector in applications such as pumps and compressors.
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 16 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 34 mm, Inside Height to Flat Not Applicable, Collar Width 13 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 35.2 mm, Collar Construction 2-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion-Resistant, Screw Seating Torque 9.5 N-m
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 1.00
- Package Weight: 0.11
Product info last updated on February 24, 2026 10:46am UTC
Category: Bearings, V-belts and Power Transmission Equipment
